  6. Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.55mm Depth of Cut

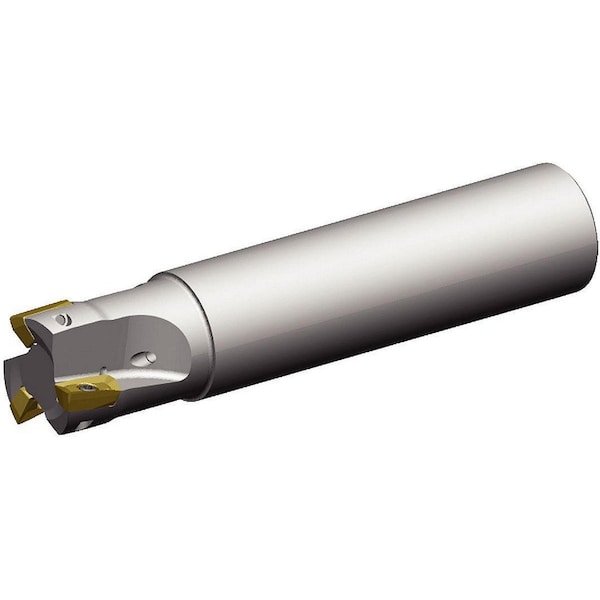

Widia Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.55mm Depth of Cut VSM11D020Z02A20XD11L110 - main

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.55mm Depth of Cut

  • Mfr # VSM11D020Z02A20XD11L110

  • Zoro # G3801504

product price:  $362.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Overall Length
110.00mm
Depth of Cut
11.55mm
Material - Machining
High Speed Steel
Shank Dia.
20.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM11D020Z02A20XD11L110
Zoro #
G3801504
UPC #
4050839640539
Country of Origin
United States

Dimensions

Overall Length
110.00mm
Depth of Cut
11.55mm
Shank Dia.
20.00mm
Insert Size
110408
Neck Dia.
18.00mm
Min. Cutting Dia.
20.00mm
Shank Length
79.00mm
Head Projection Length
31.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-8 Degrees Radial, 7 Degrees Axial
Max. Speed
35,100 RPM
Coolant Fed
Coolant Through
ISO Number
VSM11D020Z02A20XD11L110
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Side Cutting Edge Angle
90 Degrees
Number of Inserts
2
Insert Style
XD.T PD R
Number of Coolant Holes
1
Shank Type - Machining
Straight
ANSI Code
VSM11D020Z02A20XD11L110
Toolholder Style
XDPT11
Insert Holding Type
Screw
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8

Description

Indexable Profiling End Mill, Depth of Cut 11.55mm, Shank Dia. 20.00mm, Overall Length 110.00mm, ANSI Code VSM11D020Z02A20XD11L110, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
