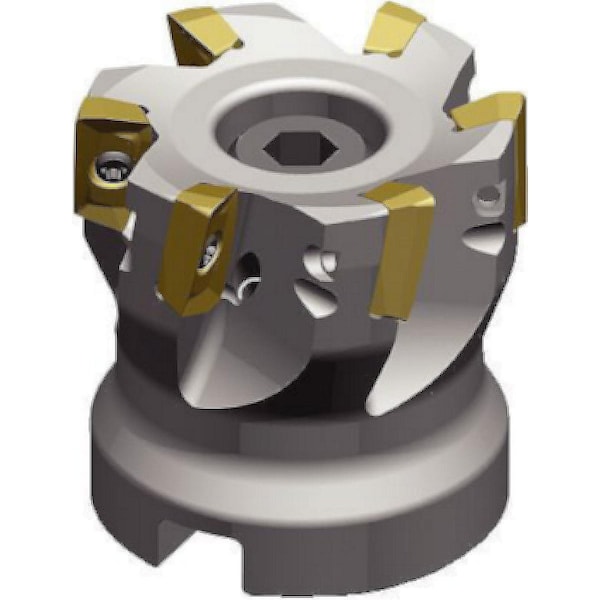

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.00mm Depth of Cut
Mfr # VSM17D063Z05S22XD17
Zoro # G3794671
product price:Â $849.99
/ea
Free Shipping & Returns
Key Features
Series
VSM17
Overall Length
40.00mm
Depth of Cut
16.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM17D063Z05S22XD17
Zoro #
G3794671
UPC #
4056544118028
Country of Origin
United States
Dimensions
Overall Length
40.00mm
Depth of Cut
16.00mm
Insert Size
1704
Arbor Dia.
22.00mm
Hub Outside Dia.
50.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-5.7 Degrees Radial, 12 Degrees Axial
ANSI Code
VSM17D063Z05S22XD17
ISO Number
VSM17D063Z05S22XD17
Compatible Hardware
Coolant Screw, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15
Coolant Fed
Coolant Through
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability
Number of Inserts
5
Insert Holding Type
Screw
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Insert Style
XD.T PE R
Side Cutting Edge Angle
90 Degrees
Max. Speed
22,400 RPM
Description
Indexable Profiling End Mill, Depth of Cut 16.00mm, Overall Length 40.00mm, ANSI Code VSM17D063Z05S22XD17, Compatible Hardware Coolant Screw, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
