  6. Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut

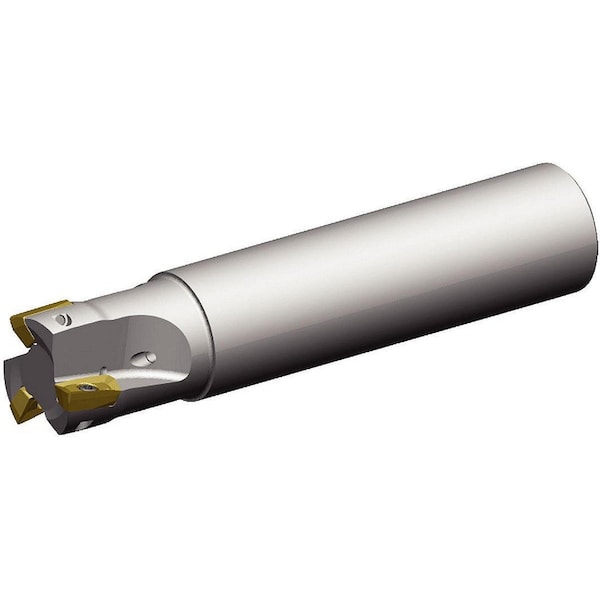

Widia Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut VSM17D040Z03A32XD17L130 - main

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut

  • Mfr # VSM17D040Z03A32XD17L130

  • Zoro # G3793235

product price:  $549.99
/ea
Free Shipping & Returns

Key Features

Series
VSM17
Overall Length
130.00mm
Depth of Cut
16.20mm
Material - Machining
High Speed Steel
Shank Dia.
32.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSM17D040Z03A32XD17L130
Zoro #
G3793235
UPC #
4056544119025
Country of Origin
United States

Dimensions

Overall Length
130.00mm
Depth of Cut
16.20mm
Shank Dia.
32.00mm
Insert Size
1704
Min. Cutting Dia.
40.00mm
Neck Dia.
36.00mm
Head Projection Length
50.00mm
Shank Length
80.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-6.9 Degrees Radial, 8.5 Degrees Axial
Insert Style
XD.T PE R
Coolant Fed
Coolant Through
Shank Type - Machining
Straight
ISO Number
VSM17D040Z03A32XD17L130
Number of Inserts
3
Insert Holding Type
Screw
Toolholder Style
XDPT17
ANSI Code
VSM17D040Z03A32XD17L130
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Max. Speed
29,800 RPM
Compatible Hardware
Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15
Side Cutting Edge Angle
90 Degrees
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Number of Coolant Holes
1

Description

Indexable Profiling End Mill, Depth of Cut 16.20mm, Shank Dia. 32.00mm, Overall Length 130.00mm, ANSI Code VSM17D040Z03A32XD17L130, Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
