  6. Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut

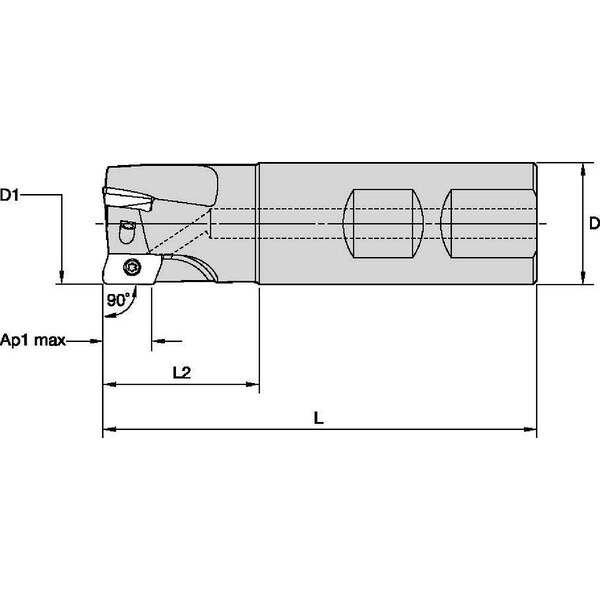

Widia Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut VSM17D040Z04B40XD17 - main

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut

  • Mfr # VSM17D040Z04B40XD17

  • Zoro # G3793831

product price:  $599.99
/ea
Free Shipping & Returns

Key Features

Series
VSM17
Overall Length
110.00mm
Depth of Cut
16.20mm
Material - Machining
High Speed Steel
Insert Size
1704
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM17D040Z04B40XD17
Zoro #
G3793831
UPC #
4056544118721
Country of Origin
United States

Dimensions

Overall Length
110.00mm
Depth of Cut
16.20mm
Insert Size
1704
Shank Dia.
40.00mm
Min. Cutting Dia.
40.00mm
Neck Dia.
36.00mm
Shank Length
71.00mm
Head Projection Length
39.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-6.9 Degrees Radial, 8.5 Degrees Axial
Compatible Hardware
Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15
Shank Type - Machining
Weldon Flat
ISO Number
VSM17D040Z04B40XD17
Number of Coolant Holes
1
ANSI Code
VSM17D040Z04B40XD17
Insert Holding Type
Screw
Insert Style
XD.T PE R
Max. Speed
29,800 RPM
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Toolholder Style
XDPT17
Side Cutting Edge Angle
90 Degrees
Number of Inserts
4
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Coolant Fed
Coolant Through

Description

Indexable Profiling End Mill, Depth of Cut 16.20mm, Shank Dia. 40.00mm, Overall Length 110.00mm, ANSI Code VSM17D040Z04B40XD17, Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
