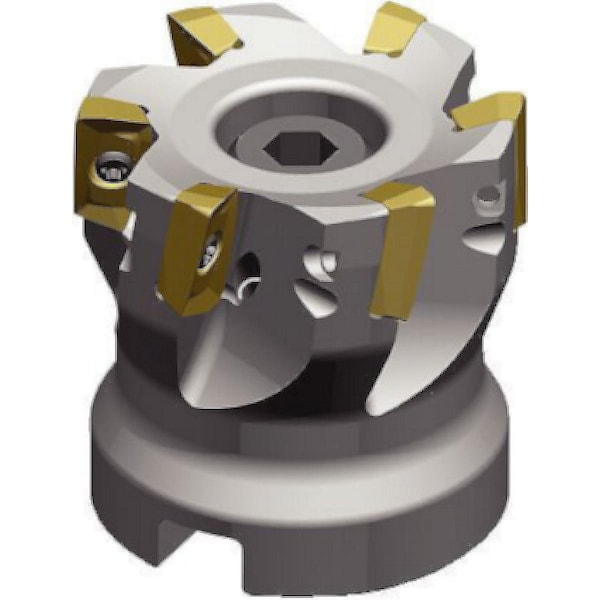

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut
Mfr # VSM17D040Z04S16XD17
Zoro # G3790882
product price:Â $597.99
/ea
Free Shipping & Returns
Key Features
Series
VSM17
Overall Length
40.00mm
Depth of Cut
16.20mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM17D040Z04S16XD17
Zoro #
G3790882
UPC #
4056544117724
Country of Origin
Germany
Dimensions
Overall Length
40.00mm
Depth of Cut
16.20mm
Insert Size
1704
Arbor Dia.
16.00mm
Hub Outside Dia.
37.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-6.9 Degrees Radial, 8.5 Degrees Axial
ISO Number
VSM17D040Z04S16XD17
ANSI Code
VSM17D040Z04S16XD17
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability
Max. Speed
29,800 RPM
Coolant Fed
Coolant Through
Compatible Hardware
Cylindrical Screw DIN912 M8x25, Insert Screw M4x0.7 x 8.4 T15, SHCS with Coolant Groove, Torx Wrench TX15
Side Cutting Edge Angle
90 Degrees
Insert Holding Type
Screw
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Number of Inserts
4
Insert Style
XD.T PE R
Description
Indexable Profiling End Mill, Depth of Cut 16.20mm, Overall Length 40.00mm, ANSI Code VSM17D040Z04S16XD17, Compatible Hardware Cylindrical Screw DIN912 M8x25, Insert Screw M4x0.7 x 8.4 T15, SHCS with Coolant Groove, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
