  6. Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.30mm Depth of Cut

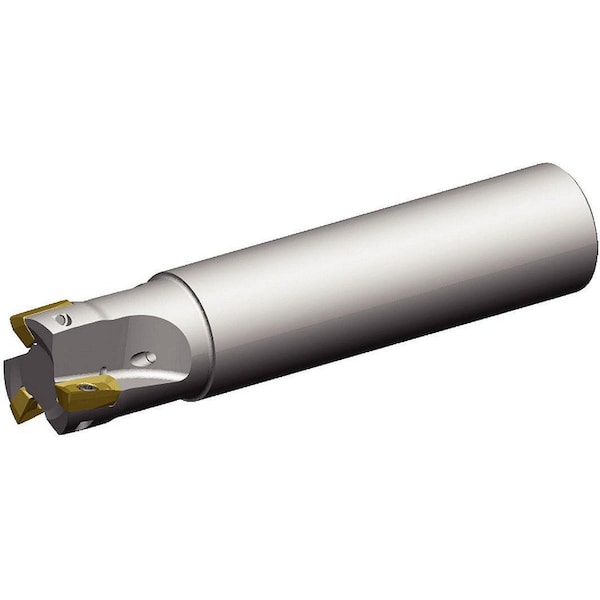

Widia Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.30mm Depth of Cut VSM17D032Z02A32XD17L120 - main

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.30mm Depth of Cut

  • Mfr # VSM17D032Z02A32XD17L120

  • Zoro # G3785842

product price:  $466.99
/ea
Free Shipping & Returns

Key Features

Series
VSM17
Overall Length
120.00mm
Depth of Cut
16.30mm
Material - Machining
High Speed Steel
Shank Dia.
32.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSM17D032Z02A32XD17L120
Zoro #
G3785842
UPC #
4056544118820
Country of Origin
Germany

Dimensions

Overall Length
120.00mm
Depth of Cut
16.30mm
Shank Dia.
32.00mm
Insert Size
1704
Neck Dia.
28.00mm
Min. Cutting Dia.
32.00mm
Shank Length
70.00mm
Head Projection Length
50.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-7.8 Degrees Radial, 7.5 Degrees Axial
Max. Speed
34,700 RPM
Side Cutting Edge Angle
90 Degrees
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Number of Inserts
2
Toolholder Style
XDPT17
Shank Type - Machining
Straight
Insert Style
XD.T PE R
ISO Number
VSM17D032Z02A32XD17L120
Insert Holding Type
Screw
Compatible Hardware
Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
ANSI Code
VSM17D032Z02A32XD17L120
Number of Coolant Holes
1
Coolant Fed
Coolant Through

Description

Indexable Profiling End Mill, Depth of Cut 16.30mm, Shank Dia. 32.00mm, Overall Length 120.00mm, ANSI Code VSM17D032Z02A32XD17L120, Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
