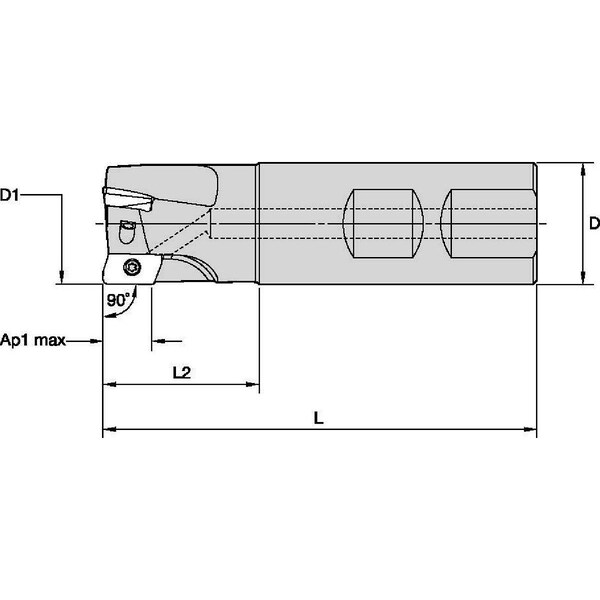

Widia Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.40mm Depth of Cut VSM17D025Z02B25XD17 - main

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.40mm Depth of Cut

  • Mfr # VSM17D025Z02B25XD17

  • Zoro # G3794209

product price:  $412.99
/ea
Free Shipping & Returns

Key Features

Series
VSM17
Overall Length
90.00mm
Depth of Cut
16.40mm
Material - Machining
High Speed Steel
Shank Dia.
25.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM17D025Z02B25XD17
Zoro #
G3794209
UPC #
4056544118523
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
90.00mm
Depth of Cut
16.40mm
Shank Dia.
25.00mm
Insert Size
1704
Neck Dia.
21.00mm
Head Projection Length
33.00mm
Min. Cutting Dia.
25.00mm
Shank Length
57.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-9.1 Degrees Radial, 7 Degrees Axial
Max. Speed
41,800 RPM
Compatible Hardware
Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Insert Holding Type
Screw
Coolant Fed
Coolant Through
Number of Inserts
2
Side Cutting Edge Angle
90 Degrees
Toolholder Style
XDPT17
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
ISO Number
VSM17D025Z02B25XD17
ANSI Code
VSM17D025Z02B25XD17
Shank Type - Machining
Weldon Flat
Number of Coolant Holes
1
Insert Style
XD.T PE R

Description

Indexable Profiling End Mill, Depth of Cut 16.40mm, Shank Dia. 25.00mm, Overall Length 90.00mm, ANSI Code VSM17D025Z02B25XD17, Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
