  6. Indexable Profiling End Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut

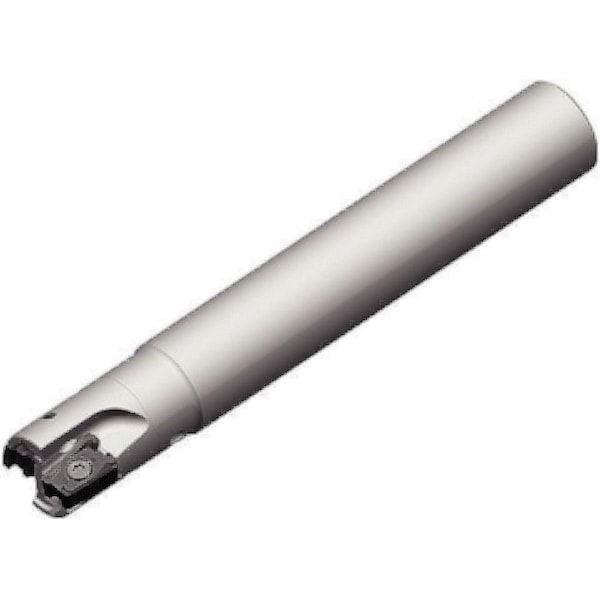

Widia Indexable Profiling End Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut 5873219 - main

Indexable Profiling End Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut

  • Mfr # 5873219

  • Zoro # G3800585

product price:  $718.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-15
Overall Length
200.00mm
Depth of Cut
15.00mm
Material - Machining
High Speed Steel
Insert Size
15T608
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5873219
Zoro #
G3800585
UPC #
4050841731096
Country of Origin
Multiple

Dimensions

Overall Length
200.00mm
Depth of Cut
15.00mm
Insert Size
15T608
Shank Dia.
32.00mm
Shank Length
150.00mm
Head Projection Length
50.00mm
Min. Cutting Dia.
32.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM490-15
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Rectangle Mill
Rake
-17.4 Degrees Radial, -8 Degrees Axial
Number of Coolant Holes
1
Number of Inserts
4
Insert Holding Type
Screw
Max. Speed
22,000 RPM
ANSI Code
VSM490D032Z04A32XN15L200
Features
Effective Internal Coolant Feature, in Stepless in Solution, Reaching the Cutting Edge Precisely, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 90 Degrees to Run Precise Applications in Multiple Axial Passes
ISO Number
VSM490D032Z04A32XN15L200
Insert Style
XNGU SRMM
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP
Cutting Application
Face Milling, Pocketing, Side/Shoulder Milling: Square End
Shank Type - Machining
Straight
Coolant Fed
Coolant Through
Toolholder Style
XN15

Description

Indexable Profiling End Mill, Depth of Cut 15.00mm, Shank Dia. 32.00mm, Overall Length 200.00mm, ANSI Code VSM490D032Z04A32XN15L200, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side/Shoulder Milling: Square End
