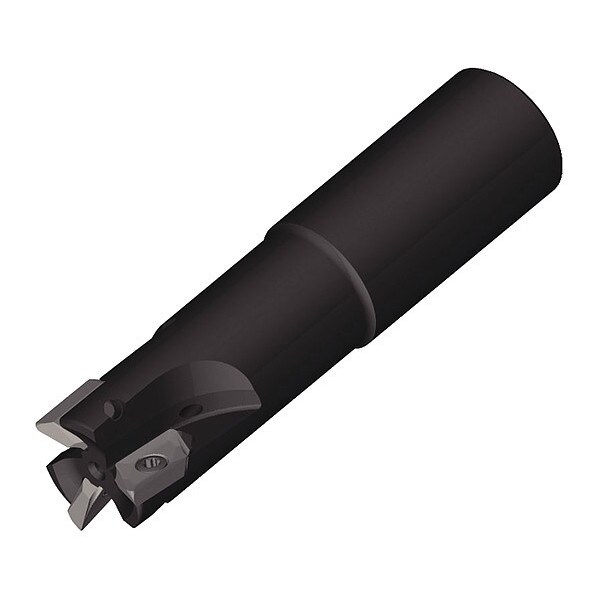

Widia Indexable Square Shoulder End Mill, VHSC Series, High Speed Steel, 5/8 in Depth of Cut VHSC100Z02C100XD16 - main

Indexable Square Shoulder End Mill, VHSC Series, High Speed Steel, 5/8 in Depth of Cut

  • Mfr # VHSC100Z02C100XD16

  • Zoro # G3793980

product price:  $655.99
/ea
Free Shipping & Returns

Key Features

Series
VHSC
Overall Length
5.0300 in
Depth of Cut
5/8 in
Material - Machining
High Speed Steel
Insert Size
16M508
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VHSC100Z02C100XD16
Zoro #
G3793980
UPC #
4059782469686
Country of Origin
India

Dimensions

Overall Length
5.0300 in
Depth of Cut
5/8 in
Insert Size
16M508
Shank Dia.
1 in
Min. Cutting Dia.
1 in
Shank Length
2.2800 in
Head Projection Length
2-3/4 in
Max. Cutting Dia.
1 in

Details

Item
Indexable Square Shoulder End Mill
Series
VHSC
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Type
End Mill
Number of Flutes
2
Insert Shape
89.27 Degrees Parallelogram
Rake
-12 Degrees Radial, 6 Degrees Axial
Features
Best-in-Class Solution for Thin-Walled and Stepping Down Machining, Consistent Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525in3/min (8600cm3/min MRR at Machining Aluminum Components
Max. Speed
50,000 RPM
ISO Number
VHSC100Z02C100XD16
Number of Inserts
2
Compatible Hardware
DP5009A, Torx Plus Drive Wrench
Number of Coolant Holes
2
Insert Style
XDET FRALP
Coolant Fed
Coolant Through
Insert Holding Type
Screw
ANSI Code
VHSC100Z02C100XD16
Shank Type - Machining
Straight
Toolholder Style
XD16
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank
Material
High Speed Steel

Description

Indexable Square Shoulder End Mill, Max. Cutting Dia. 1 in, Shank Dia. 1 in, Straight, Overall Length 5.0300 in, ANSI Code VHSC100Z02C100XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through
