  6. Indexable Square Shoulder End Mill, VSM490-15 Series, 1" Max Cut Dia, High Speed Steel

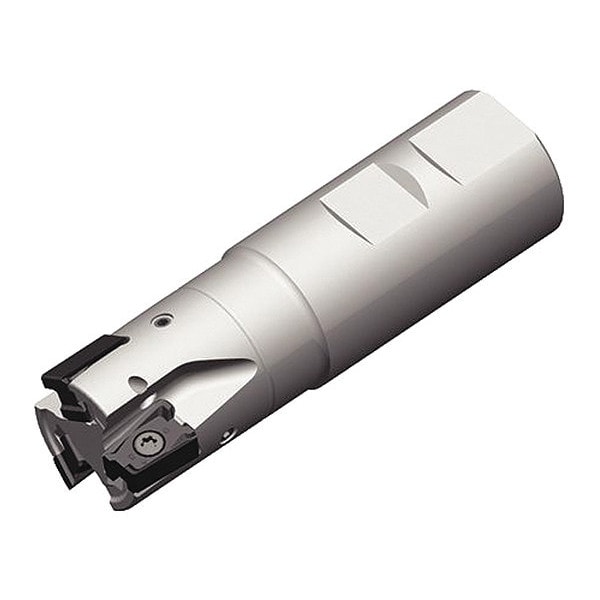

Widia Indexable Square Shoulder End Mill, VSM490-15 Series, 1" Max Cut Dia, High Speed Steel VSM490D100Z02W100XN15 - main

Indexable Square Shoulder End Mill, VSM490-15 Series, 1" Max Cut Dia, High Speed Steel

  • Mfr # VSM490D100Z02W100XN15

  • Zoro # G3791555

product price:  $488.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-15
Cutting Dia.
1"
Overall Length
4.0300 in
Number of Inserts Required
2
Depth of Cut
0.5910 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSM490D100Z02W100XN15
Zoro #
G3791555
UPC #
4050841619363
Country of Origin
United States

Dimensions

Cutting Dia.
1"
Overall Length
4.0300 in
Depth of Cut
0.5910 in
Shank Dia.
1 in
Insert Size
15T608
Shank Length
2.2800 in
Neck Dia.
0.9290 in
Head Projection Length
1-3/4 in
Min. Cutting Dia.
1 in
Max. Cutting Dia.
1 in

Details

Item
Indexable Square Shoulder End Mill
Series
VSM490-15
Number of Inserts Required
2
Material - Machining
High Speed Steel
Shank Shape
Weldon
Cutting Direction
Right Hand
ANSI Code
VSM490D100Z02W100XN15
Shank Type - Machining
Weldon Flat
Toolholder Style
XN15
Features
Effective Internal Coolant Feature, in Stepless in Solution, Reaching the Cutting Edge Precisely, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes
Cutting Application
Face Milling, Pocketing, Side/Shoulder Milling: Square End, Slotting: Square End
Coolant Fed
Coolant Through
Number of Coolant Holes
2
Insert Holding Type
Screw
ISO Number
VSM490D100Z02W100XN15
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP
Max. Speed
26,300 RPM
Number of Inserts
2
Insert Style
XNGU SRMM
Rake
-20.542 Degrees Radial, -8 Degrees Axial
Insert Shape
90 Degrees Rectangle Mill
Number of Flutes
2

Description

Indexable Square Shoulder End Mill, Max. Cutting Dia. 1 in, Shank Dia. 1 in, Weldon Flat, Overall Length 4.0300 in, ANSI Code VSM490D100Z02W100XN15, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
