Indexable Toolholder, DSDN,

  • Mfr # DSDNN204KC3

  • Zoro # G3795021


product price: $129.99
/ea
Free Shipping & Returns

Key Features

Shank
Square
Cutting Length
0.5000"
Cutting Direction
Neutral
Overall Length
6 in
Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DSDNN204KC3
Zoro #
G3795021
UPC #
4050841503235
Country of Origin
India

Dimensions

Cutting Length
0.5000"
Overall Length
6 in
Shank Length
4.5600 in
Insert Size
432
Shank Width
1 1/4 in
Shank Height
1-1/4 in

Details

Item
Indexable Turning Toolholder
Shank
Square
Cutting Direction
Neutral
Material
Steel
Rake
-7 Degrees Axial, 0 Degrees Radial
Insert Shape
Square
Clamp
Kenclamp
Style
Negative
Number of Inserts Required
1
ISO Number
DSDNN204KC3
Insert Style
SN
Approach Angle
45 Degrees
Insert Holding Type
Clamp and Lock Pin
Insert Clearance Angle
0 Degrees
Side Cutting Edge Angle
45 Degrees
Insert Inscribed Circle
1/2 in
Toolholder Style
DSDN
ANSI Code
DSDNN204KC3
Compatible Hardware
15IP Clamp Screw, 15IP Lock Pin, 15IP Shim Screw
Cutting Application
Facing, Profiling, Turning
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Lead Angle
45 Degrees deg
Measurement System
Decimal Inch

Description

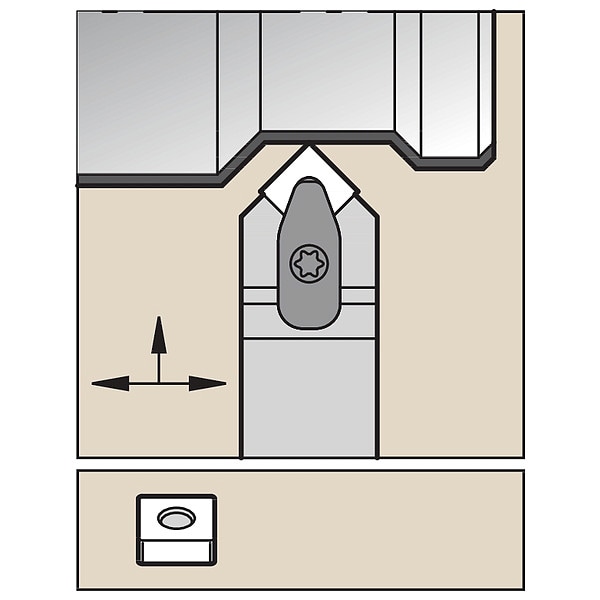

Indexable Turning Toolholder, DSDN, Insert Style SN, Overall Length 6 in
