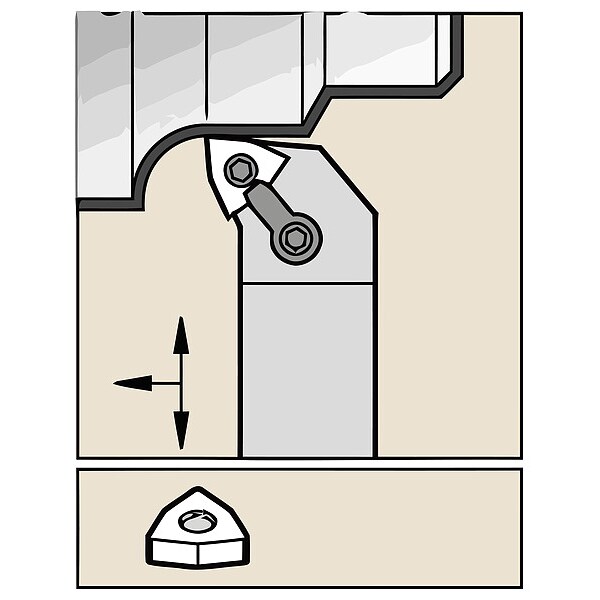

Indexable Toolholder, MWLN,

  • Mfr # MWLNR124B

  • Zoro # G3795484


product price: $110.99
/ea
Free Shipping & Returns

Key Features

Clamp
Top and Hole Clamping
Shank
Square
Insert Size
432
Number of Inserts Required
1
Cutting Length
0.3420"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MWLNR124B
Zoro #
G3795484
UPC #
4021169422942
Country of Origin
United States

Dimensions

Insert Size
432
Cutting Length
0.3420"
Overall Length
4-1/2 in
Head Length
1.1200 in
Shank Width
3/4 in
Shank Height
3/4 in

Details

Item
Indexable Turning Toolholder
Clamp
Top and Hole Clamping
Shank
Square
Number of Inserts Required
1
Material
Steel
Cutting Direction
Right Hand
Rake
Double Negative
Insert Shape
Trigon
Side Cutting Edge Angle
-5 Degrees
ISO Number
MWLNR124B
Toolholder Style
MWLN
Insert Inscribed Circle
1/2 in
Insert Holding Type
Clamp and Lock Pin
Coolant Fed
Non-Coolant Through
Insert Style
WN
Approach Angle
95 Degrees
Insert Clearance Angle
0 Degrees
Compatible Hardware
1/8 in Clamp Screw, 3/32 in Lock Pin
ANSI Code
MWLNR124B
Material - Machining
High Speed Steel
Measurement System
Decimal Inch
Lead Angle
-5 Degrees

Description

Indexable Turning Toolholder, MWLN, Insert Style WN, Overall Length 4-1/2 in
