Widia Indexable Toolholder, SDJC, SDJCR123 - main

Indexable Toolholder, SDJC,

  • Mfr # SDJCR123

  • Zoro # G3786700

product price: $169.99
/ea
Free Shipping & Returns

Key Features

Shank
Square
Cutting Direction
Right Hand
Shank Length
3-5/8 in
Style
Screw-On
Insert Shape
55 Degrees Diamond
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SDJCR123
Zoro #
G3786700
UPC #
4021169422249
Country of Origin
Bulgaria

Dimensions

Shank Length
3-5/8 in
Cutting Length
0.4578"
Overall Length
4-1/2 in
Insert Size
32.52
Shank Width
3/4 in
Shank Height
3/4 in
Head Length
7/8 in

Details

Item
Indexable Turning Toolholder
Shank
Square
Cutting Direction
Right Hand
Style
Screw-On
Insert Shape
55 Degrees Diamond
Rake
Positive
Clamp
Screw
Material
Steel
Insert Screw
T15
Number of Inserts Required
1
ANSI Code
SDJCR123
Approach Angle
93 Degrees
ISO Number
SDJCR123
Coolant Fed
Non-Coolant Through
Insert Holding Type
Screw On
Cutting Application

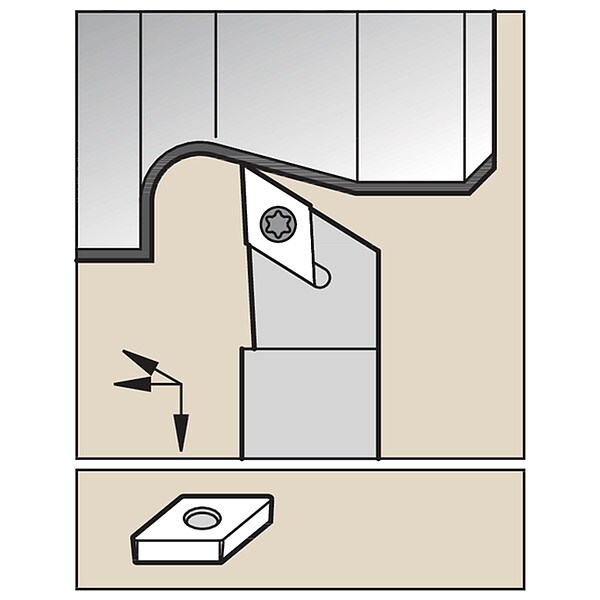

Profiling, Turning
Compatible Hardware
M3.5 Shim Screw, T15 Insert Screw
Insert Style
DC
Insert Clearance Angle
7 Degrees
Side Cutting Edge Angle
-3 Degrees
Insert Inscribed Circle
3/8 in
Toolholder Style
SDJC
Material - Machining
High Speed Steel
Measurement System
Decimal Inch
Lead Angle
-3 Degrees

Description

Indexable Turning Toolholder, SDJC, Insert Style DC, Overall Length 4-1/2 in
