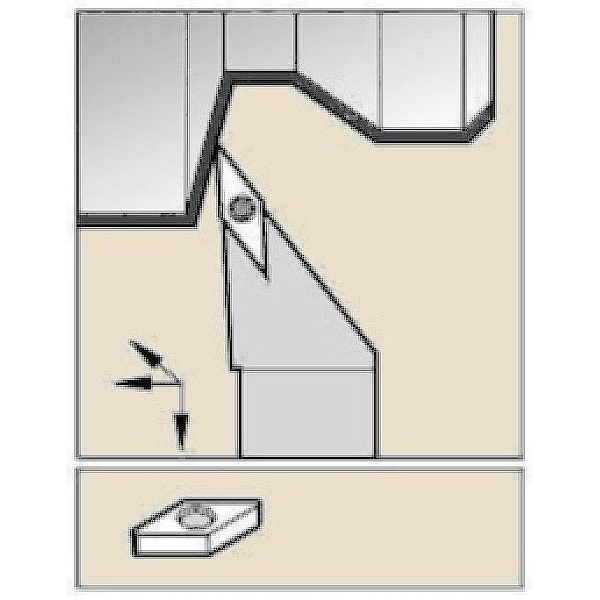

Widia Indexable Toolholder, SVJB, SVJBL123 - main

Indexable Toolholder, SVJB,

  • Mfr # SVJBL123

  • Zoro # G3791969

product price: $163.99
/ea
Free Shipping & Returns

Key Features

Shank Length
3-1/8 in
Insert Size
332
Overall Length
4-1/2 in
Rake
Positive
Cutting Direction
Left Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVJBL123
Zoro #
G3791969
UPC #
4021169422065
Country of Origin
United States

Dimensions

Shank Length
3-1/8 in
Insert Size
332
Overall Length
4-1/2 in
Cutting Length
0.6538"
Head Length
1-3/8 in
Shank Width
3/4 in
Shank Height
3/4 in

Details

Item
Indexable Turning Toolholder
Rake
Positive
Cutting Direction
Left Hand
Number of Inserts Required
1
Style
Screw-On
Material
Steel
Clamp
Screw
Shank
Square
Insert Screw
T15
Insert Shape
35 Degrees Diamond
Insert Inscribed Circle
3/8 in
Compatible Hardware
M3.5 Shim Screw, T15 Insert Screw
Side Cutting Edge Angle
-3 Degrees
Coolant Fed
Non-Coolant Through
Toolholder Style
SVJB
Approach Angle
93 Degrees
ANSI Code
SVJBL123
Insert Holding Type
Screw On
Insert Clearance Angle
5 Degrees
Cutting Application
Profiling, Turning
Insert Style
VB
ISO Number
SVJBL123
Material - Machining
High Speed Steel
Lead Angle
-3 Degrees
Measurement System
Decimal Inch

Description

Indexable Turning Toolholder, SVJB, Insert Style VB, Overall Length 4-1/2 in
