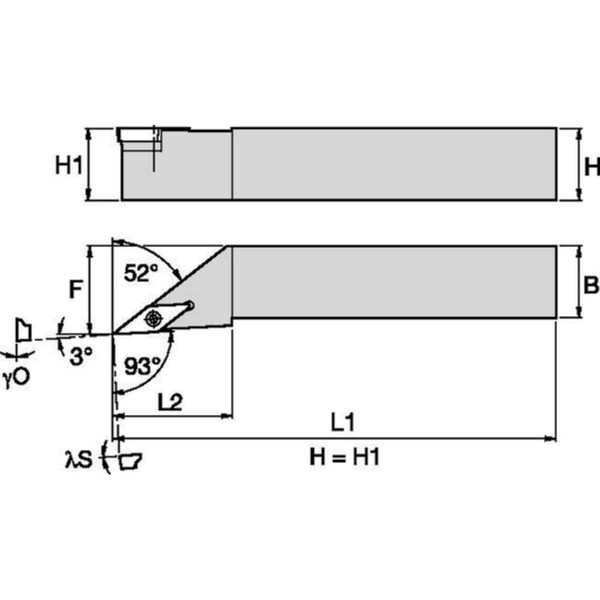

Widia Indexable Toolholder, SVJB, SVJBL163 - main

Indexable Toolholder, SVJB,

  • Mfr # SVJBL163

  • Zoro # G3788539

product price: $166.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
35 Degrees Diamond
Overall Length
6 in
Style
Screw-On
Material
Steel
Cutting Length
0.6538"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVJBL163
Zoro #
G3788539
UPC #
4021169422010
Country of Origin
United States

Dimensions

Overall Length
6 in
Cutting Length
0.6538"
Insert Size
332
Shank Length
4-5/8 in
Shank Height
1 in
Head Length
1-3/8 in
Shank Width
1 in

Details

Item
Indexable Turning Toolholder
Insert Shape
35 Degrees Diamond
Style
Screw-On
Material
Steel
Cutting Direction
Left Hand
Insert Screw
T15
Shank
Square
Number of Inserts Required
1
Rake
Positive
Clamp
Screw
Insert Inscribed Circle
3/8 in
Insert Style
VB
Compatible Hardware
M3.5 Shim Screw, T15 Insert Screw
Approach Angle
93 Degrees
Toolholder Style
SVJB
Coolant Fed
Non-Coolant Through
Insert Holding Type
Screw On
ISO Number
SVJBL163
ANSI Code
SVJBL163
Side Cutting Edge Angle
-3 Degrees
Insert Clearance Angle
5 Degrees
Cutting Application
Profiling, Turning
Material - Machining
High Speed Steel
Measurement System
Decimal Inch
Lead Angle
-3 Degrees

Description

Indexable Turning Toolholder, SVJB, Insert Style VB, Overall Length 6 in
