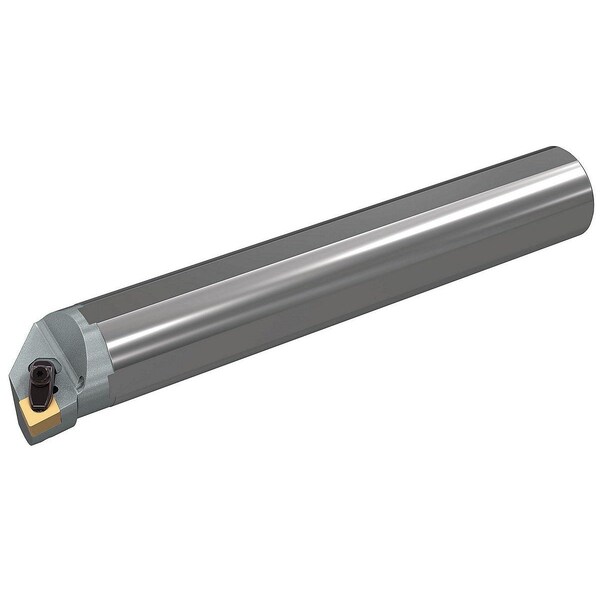

Indxable Boring Bar Right, 2-1/2"dia, 16"L
Mfr # A40VDCLNR6KC4
Zoro # G3820763
product price: $733.99
/ea
Free Shipping & Returns
Key Features
Insert Size
643
Cutting Direction
Right Hand
ISO Number
A40VDCLNR6KC4
Rake
-10 Degrees Radial, -5 Degrees Axial
Cutting Dia.
2.5000"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A40VDCLNR6KC4
Zoro #
G3820763
UPC #
4050841474276
Country of Origin
United States
Dimensions
Insert Size
643
Cutting Dia.
2.5000"
Overall Length
16 in
Shank Dia.
2-1/2 in
Shank Length
350.39mm
Min. Bore Dia.
76.96mm
Insert Cutting Edge Length
19.35mm
Details
Item
Indexable Thread Turning Tool Holder
Cutting Direction
Right Hand
ISO Number
A40VDCLNR6KC4
Rake
-10 Degrees Radial, -5 Degrees Axial
Cutting Application
Inside Diameter Chamfering, Inside Diameter Chamfering and Profiling
Insert Holding Type
Top Clamping
Center to Cutting Tip
0 in
Coolant Fed
Coolant Through
ANSI Code
A40VDCLNR6KC4
Insert Style
CN..
Toolholder Style
A-DCLN-KC
Shank Material
High Speed Steel
Number of Coolant Holes
1
Measurement System
Fractional Inch
Description
Indexable Thread Turning Tool Holder, Insert Style CN.., Right Hand, Inside Diameter Chamfering, Inside Diameter Chamfering and Profiling, ANSI Code A40VDCLNR6KC4, Center to Cutting Tip 0 in, Coolant Fed Coolant Through
