  9. Milling Insert, Parallelogram, 11.00mm

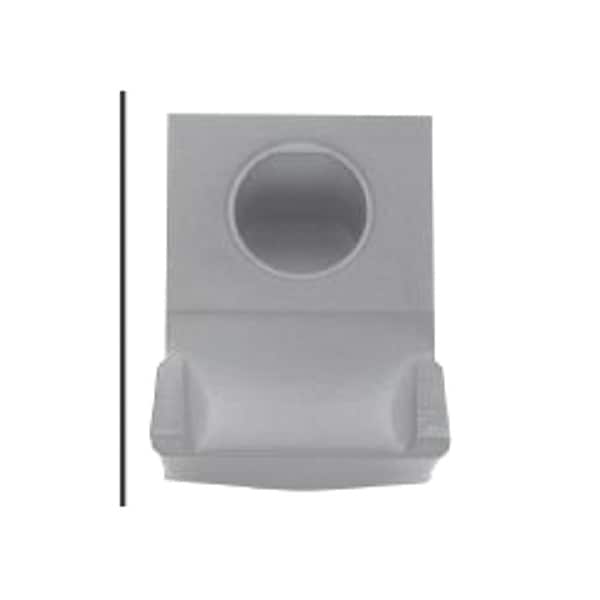

Widia Milling Insert, Parallelogram, 11.00mm BDMT11T316ERML - main

Milling Insert, Parallelogram, 11.00mm

  • Mfr # BDMT11T316ERML

  • Zoro # G3789062

product price: $17.59
/ea
Sold in multiples of 10 for $175.90

Key Features

Mounting Hole Dia.
2.79mm
Insert Thickness
0.1500"
Lead Angle
75 Degrees
Insert Style
BDMT
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDMT11T316ERML
Zoro #
G3789062
UPC #
4021169758836
Country of Origin
Japan

Dimensions

Mounting Hole Dia.
2.79mm
Insert Thickness
0.1500"
Insert Size
11T316
Through Hole Inside Dia.
2.79mm
Width
6.70mm
Cutting Edge Length
11.00mm
Thickness
0.1500 in
Corner Radius
1.69mm

Details

Lead Angle
75 Degrees
Insert Style
BDMT
Item
Parallelogram Milling Insert
Chip-Breaker
Yes
Cutting Direction
Right Hand
ISO Number
BDMT11T316ERML
Grade
TN6405
Insert Material
Carbide
Insert Shape
Parallelogram
For Use With
M6800 Series 90 Degrees Shoulder Mills
Mounting Style
Taper Screw
Series
M6800
Shape
Parallelogram
Secondary Material Application
Nickel, Titanium
Clearance Angle
13 Degrees
Chip-Breaker Code
ML
Manufacturer Grade
TN6405
Secondary Material Application ISO Code
S
For Toolholder
12396450400, 12396451000, 12396451600, 12396452200, 12396452800, 12396453200
Measurement System
Metric
Primary Material Application
Cast Iron
Material - Machining
Carbide
Finish - Machining
TiAlN
Chip-Breaker Style
On One Side
ANSI Code
BDMT11T316ERML
Primary Material Application ISO Code
K
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Number of Cutting Edges
2
Included Angle
80 Degrees
Insert Holding Type
Taper Screw

Description

Parallelogram Milling Insert, BDMT11T316ERML, ML, On One Side, 13 Degrees
