  9. Milling Insert, Parallelogram, 15.64mm

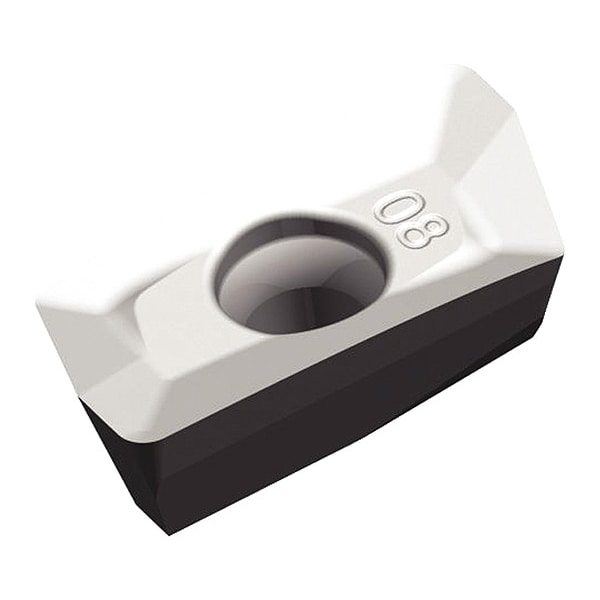

Widia Milling Insert, Parallelogram, 15.64mm XDCT1715RALP - main

Milling Insert, Parallelogram, 15.64mm

  • Mfr # XDCT1715RALP

  • Zoro # G3801139

product price: $24.19
/ea
Sold in multiples of 5 for $120.95

Key Features

Cutting Direction
Right Hand
For Use With
VSM17 Series 0 Degrees /90 Degrees Shoulder Mills
Super Alloy (S) Compatibility
No
Insert Material
Carbide
Steel (P) Compatibility
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XDCT1715RALP
Zoro #
G3801139
UPC #
4056544446312
Country of Origin
Germany

Dimensions

Insert Thickness
0.1890"
Insert Size
170460
Mounting Hole Dia.
4.40mm
Cutting Edge Length
15.64mm
Thickness
0.1890 in
Corner Radius
6.00mm
Through Hole Inside Dia.
4.40mm
Width
9.56mm

Details

Cutting Direction
Right Hand
For Use With
VSM17 Series 0 Degrees /90 Degrees Shoulder Mills
Super Alloy (S) Compatibility
No
Insert Material
Carbide
Item
Parallelogram Milling Insert
Steel (P) Compatibility
No
Chip-Breaker
Yes
Lead Angle
1 Degrees ANSI, 89 Degrees ISO
Insert Style
XDCT
Series
VSM17
Hardened (H) Compatibility
No
Mounting Style
Taper Screw
Rake
20 Degrees
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Nonferrous (N)
Insert Shape
Parallelogram
Stainless (M) Compatibility
No
ISO Number
XDCT170460PEFRALP
Grade
WN25PM
Non Ferrous (N) Compatibility
Yes
Manufacturer Grade
WN25PM
Included Angle
75 Degrees
Clearance Angle
15 Degrees
Chip-Breaker Style
On One Side
Features
ALP is the First Choice for Roughing and Finishing of Aluminium Alloy
ANSI Code
XDCT1715RALP
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Insert Holding Type
Taper Screw
Measurement System
Metric
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Primary Material Application ISO Code
N
Number of Cutting Edges
2
Chip-Breaker Code
ALP
Material - Machining
Carbide
For Toolholder
VHM17D200Z04S350XD17, VHM17D200Z04S550XD17, VHM17D200Z05S550XD17, VHM17D250Z04S450XD17, VHM17D250Z05S450XD17, VSM17D150Z04S075XD17, VSM17D200Z04S075XD17, VSM17D200Z05S075XD17, VSM17D200Z06S075XD17, VSM17D250Z05S075XD17, VSM17D250Z06S075XD17, VSM17D300Z06S100XD17, VSM17D300Z07S100XD17, VSM17D400Z08S150XD17, VSM17D500Z09S150XD17, VSM17D600Z12S150XD17
Finish - Machining
TiB2
Shape
Parallelogram

Description

Parallelogram Milling Insert, 20 Degrees , XDCT1715RALP, ALP, On One Side, 15 Degrees
