  9. Milling Insert, Parallelogram, 17.00mm

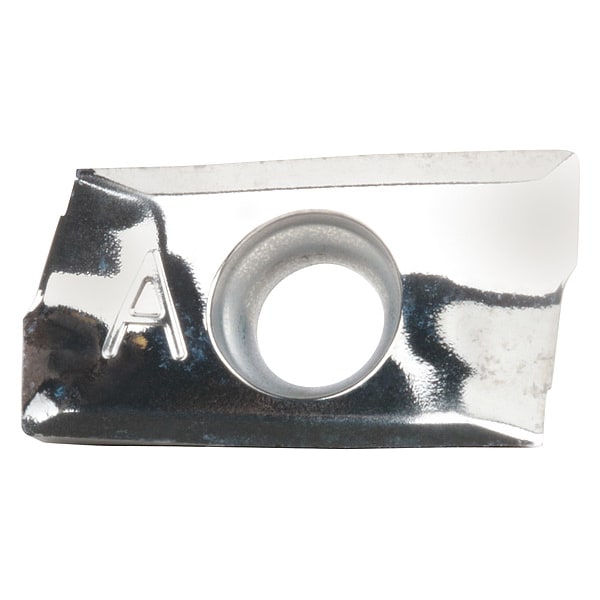

Widia Milling Insert, Parallelogram, 17.00mm BDGT170404FRAL - main

Milling Insert, Parallelogram, 17.00mm

  • Mfr # BDGT170404FRAL

  • Zoro # G3789753

product price: $23.19
/ea
Sold in multiples of 10 for $231.90

Key Features

Insert Material
Carbide
Chip-Breaker
Yes
For Use With
M6800 Series 90 Degrees Shoulder Mills
Insert Style
BDGT
Series
M6800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDGT170404FRAL
Zoro #
G3789753
UPC #
4021169563362
Country of Origin
Japan

Dimensions

Insert Size
170404
Mounting Hole Dia.
4.41mm
Insert Thickness
0.2007"
Cutting Edge Length
17.00mm
Width
9.60mm
Corner Radius
0.40mm
Through Hole Inside Dia.
4.41mm

Details

Insert Material
Carbide
Chip-Breaker
Yes
For Use With
M6800 Series 90 Degrees Shoulder Mills
Insert Style
BDGT
Series
M6800
Grade
THR-S
Item
Parallelogram Milling Insert
Insert Shape
Parallelogram
Mounting Style
Taper Screw
ISO Number
BDGT170404FRAL
Cutting Direction
Right Hand
For Toolholder
12396470400, 12396471000, 12396471600, 12396472200, 12396472800, 12396473200
Measurement System
Metric
Chip-Breaker Style
On One Side
Chip-Breaker Code
AL
Number of Cutting Edges
2
Insert Holding Type
Taper Screw
ANSI Code
BDGT170404FRAL
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Clearance Angle
13 Degrees
Shape
Parallelogram
Included Angle
80 Degrees
Material - Machining
Carbide
Finish - Machining
Bright (Uncoated)

Description

Parallelogram Milling Insert, BDGT170404FRAL, AL, On One Side, 13 Degrees
