  9. Milling Insert, Parallelogram, 7.00mm

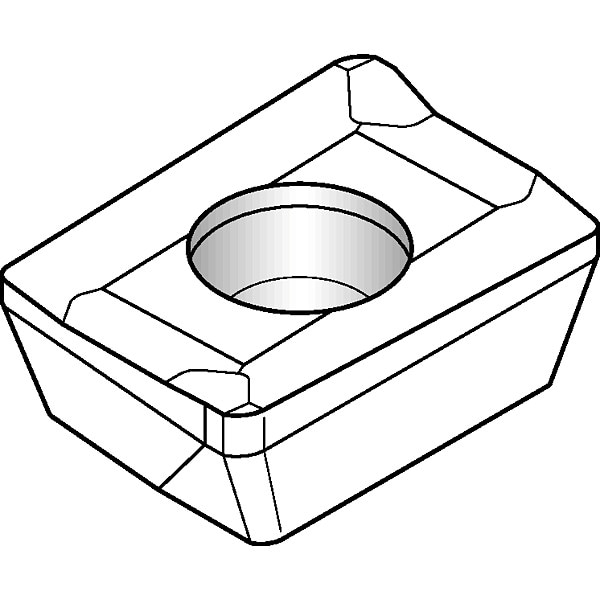

Widia Milling Insert, Parallelogram, 7.00mm BDMT070302ERML - main

Milling Insert, Parallelogram, 7.00mm

  • Mfr # BDMT070302ERML

  • Zoro # G3788161

product price: $14.49
/ea
Sold in multiples of 10 for $144.90

Key Features

Insert Size
070302
Insert Style
BDMT
Chip-Breaker
Yes
Series
M6800
Mounting Style
Taper Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDMT070302ERML
Zoro #
G3788161
UPC #
4021169757907
Country of Origin
Japan

Dimensions

Insert Size
070302
Mounting Hole Dia.
2.31mm
Insert Thickness
0.1024"
Thickness
0.1024 in
Corner Radius
0.20mm
Width
4.54mm
Cutting Edge Length
7.00mm
Through Hole Inside Dia.
2.31mm

Details

Insert Style
BDMT
Chip-Breaker
Yes
Series
M6800
Item
Parallelogram Milling Insert
Mounting Style
Taper Screw
ISO Number
BDMT070302ERML
Lead Angle
75 Degrees
Cutting Direction
Right Hand
For Use With
M6800 Series 90 Degrees Shoulder Mills
Insert Material
Carbide
Insert Shape
Parallelogram
Grade
TN6430
For Toolholder
15396440800, 15396441000, 15396441800, 15396442200, 15396442400, 15396442800, 15396443200, 15396443400, 15396445000, 15396446200, 15396447200
Included Angle
80 Degrees
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Clearance Angle
15 Degrees
Number of Cutting Edges
2
Measurement System
Metric
Finish - Machining
TiAlN
Insert Holding Type
Taper Screw
Chip-Breaker Style
On One Side
Material - Machining
Carbide
Manufacturer Grade
TN6430
Primary Material Application ISO Code
P
Chip-Breaker Code
ML
Shape
Parallelogram
ANSI Code
BDMT070302ERML
Secondary Material Application ISO Code
K
Secondary Material Application
Cast Iron
Primary Material Application
Steel

Description

Parallelogram Milling Insert, BDMT070302ERML, ML, On One Side, 15 Degrees
