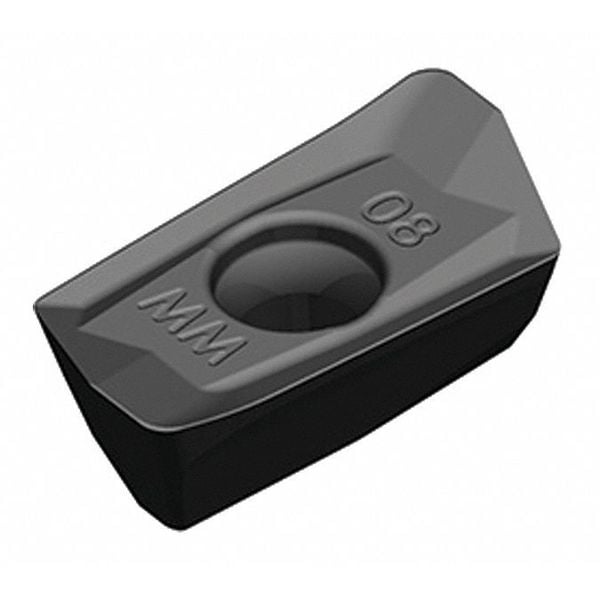

Widia Milling Insert, Parallelogram XDPT1702SRMM - main

Milling Insert, Parallelogram

  • Mfr # XDPT1702SRMM

  • Zoro # G4876949

product price: $20.19
/ea
Sold in multiples of 5 for $100.95

Key Features

Inscribed Circle
0.378 in
Stainless (M) Compatibility
Yes
Coating
AlTiN
Mounting Hole Dia.
4.40mm
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XDPT1702SRMM
Zoro #
G4876949
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Hole Dia.
4.40mm
Insert Size
170408
Nose Radius
0.031"
Insert Thickness
0.193"
Through Hole Inside Dia.
4.40mm
Thickness
0.1930 in
Cutting Edge Length
16.71mm
Corner Radius
0.80mm
Width
9.60mm

Details

Inscribed Circle
0.378 in
Stainless (M) Compatibility
Yes
Coating
AlTiN
Chip-Breaker
Yes
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
Yes
Insert Style
XDPT
Item
Parallelogram Milling Insert
Lead Angle
1 Degrees ANSI, 89 Degrees ISO
Workpiece Compatibility
Cast Iron (K), Hardened (H), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Insert Material
Carbide
For Use With
VSM17 Series Shoulder Mills
Rake
11.65 Degrees
Non Ferrous (N) Compatibility
Yes
Insert Application
Medium
Mounting Style
Screw Clamp
Hardened (H) Compatibility
Yes
ISO Number
XDPT170408PESRMM
Cutting Direction
Right Hand
Cast Iron (K) Compatibility
Yes
Grade
WS40PM
Insert Shape
Parallelogram
No. of Edges
2
ANSI Number
XDPT1702SRMM
Series
VSM17
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Cutting Application
Medium
Finish - Machining
AlTiN
Number of Cutting Edges
2
Chip-Breaker Style
On One Side
Wiper Insert
Yes
ANSI Code
XDPT1702SRMM
Chip-Breaker Code
MM
Manufacturer Grade
WS40PM
Insert Holding Type
Screw Clamp
Primary Material Application ISO Code
M, P, S
Secondary Material Application
Steel
Material - Machining
Carbide
Included Angle
75 Degrees
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Clearance Angle
15 Degrees
Secondary Material Application ISO Code
P
For Toolholder
VHM17D200Z04S350XD17, VHM17D200Z04S550XD17, VHM17D200Z05S550XD17, VHM17D250Z04S450XD17, VHM17D250Z05S450XD17, VSM17D150Z04S075XD17, VSM17D200Z04S075XD17, VSM17D200Z05S075XD17, VSM17D200Z06S075XD17, VSM17D250Z05S075XD17, VSM17D250Z06S075XD17, VSM17D300Z06S100XD17, VSM17D300Z07S100XD17, VSM17D400Z08S150XD17, VSM17D500Z09S150XD17, VSM17D600Z12S150XD17
Measurement System
Metric
Shape
Parallelogram
Features
MM is a Medium to Heavy-Machining Geometry and is the First Choice for General Purpose and Universal Applications

Description

Parallelogram Milling Insert, Inscribed Circle 0.378 in, 11.65 Degrees , XDPT1702SRMM, MM, On One Side, 15 Degrees
