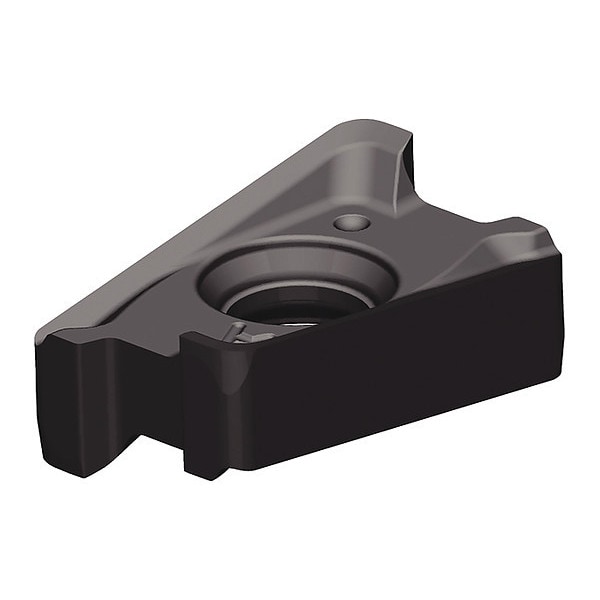

Widia Milling Insert, Rectangle, 10.83mm XNGU1001ERALP - main

Milling Insert, Rectangle, 10.83mm

  • Mfr # XNGU1001ERALP

  • Zoro # G3801279

product price: $23.29
/ea
Sold in multiples of 10 for $232.90

Key Features

Insert Shape
Rectangle
Mounting Hole Dia.
3.40mm
Mounting Style
Taper Screw
Chip-Breaker
Yes
Insert Thickness
0.1900"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XNGU1001ERALP
Zoro #
G3801279
UPC #
4059782466043
Country of Origin
Germany

Dimensions

Mounting Hole Dia.
3.40mm
Insert Thickness
0.1900"
Insert Size
1000404
Through Hole Inside Dia.
3.40mm
Corner Radius
1/64 in
Cutting Edge Length
10.83mm
Thickness
0.1900 in
Width
6.60mm

Details

Insert Shape
Rectangle
Mounting Style
Taper Screw
Item
Milling Insert
Chip-Breaker
Yes
Lead Angle
75 Degrees
For Use With
VSM490-10 Series 0 Degrees /90 Degrees Shoulder Mills
Insert Material
Carbide
Grade
WN25PM
Series
VSM490-10
Cutting Direction
Right Hand
ISO Number
XNGU100404ERALP
Insert Style
XNGU
Number of Cutting Edges
4
Finish - Machining
TiB2
For Toolholder
VSM490D150Z04S075XN10, VSM490D150Z06S075XN10, VSM490D150Z07S075XN10, VSM490D200Z05S075XN10, VSM490D200Z07S075XN10, VSM490D200Z09S075XN10, VSM490D250Z05S075XN10, VSM490D250Z07S075XN10, VSM490D250Z09S075XN10, VSM490D300Z06S100XN10, VSM490D300Z08S100XN10, VSM490D300Z10S100XN10, VSM490D400Z08S150XN10, VSM490D400Z12S150XN10, VSM490D500Z10S150XN10, VSM490D500Z14S150XN10
Manufacturer Grade
WN25PM
Material - Machining
Carbide
Insert Holding Type
Taper Screw
Wiper Insert
Yes
ANSI Code
XNGU1001ERALP
Hole Type
40 Degrees to 60 Degrees Double Countersink Hole
Clearance Angle
0 Degrees
Included Angle
90 Degrees
Primary Material Application ISO Code
N
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Shape
Rectangle
Measurement System
Fractional Inch
Chip-Breaker Style
Double Sided
Cutting Application
Milling
Chip-Breaker Code
ALP

Description

Milling Insert

Restrictions
