  9. Milling Insert, Rectangle, 10.83mm

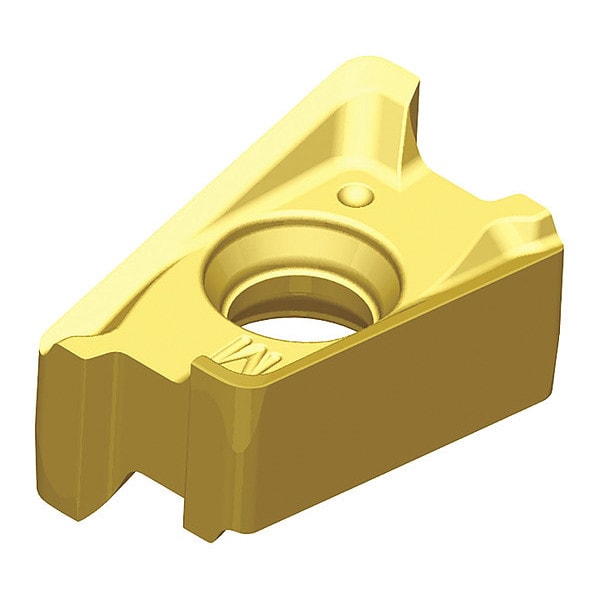

Widia Milling Insert, Rectangle, 10.83mm XNGU1001SRMM - main

Milling Insert, Rectangle, 10.83mm

  • Mfr # XNGU1001SRMM

  • Zoro # G3801041

product price: $20.89
/ea
Sold in multiples of 10 for $208.90

Key Features

Chip-Breaker
Yes
Grade
WP25PM
Mounting Style
Taper Screw
ISO Number
XNGU100404SRMM
Insert Style
XNGU
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XNGU1001SRMM
Zoro #
G3801041
UPC #
4059782469440
Country of Origin
Germany

Dimensions

Mounting Hole Dia.
3.40mm
Insert Thickness
0.1900"
Insert Size
100404
Cutting Edge Length
10.83mm
Width
6.60mm
Thickness
0.1900 in
Corner Radius
1/64 in
Through Hole Inside Dia.
3.40mm

Details

Chip-Breaker
Yes
Grade
WP25PM
Mounting Style
Taper Screw
ISO Number
XNGU100404SRMM
Insert Style
XNGU
For Use With
VSM490-10 Series 0 Degrees /90 Degrees Shoulder Mills
Insert Material
Carbide
Series
VSM490-10
Insert Shape
Rectangle
Item
Milling Insert
Cutting Direction
Right Hand
Coating Process
PVD
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
ANSI Code
XNGU1001SRMM
Finish - Machining
AlTiN
Chip-Breaker Style
Double Sided
Wiper Insert
Yes
Material - Machining
Carbide
Hole Type
40 Degrees to 60 Degrees Double Countersink Hole
Manufacturer Grade
WP25PM
Cutting Application
Milling
Clearance Angle
0 Degrees
Included Angle
90 Degrees
Secondary Material Application
Cast Iron, Hardened Steel
Secondary Material Application ISO Code
H, K
Primary Material Application ISO Code
M, P, S
Measurement System
Fractional Inch
Insert Holding Type
Taper Screw
Chip-Breaker Code
MM
Number of Cutting Edges
4
Shape
Rectangle

Description

Milling Insert
