  9. Milling Insert, Rectangle, 10.83mm

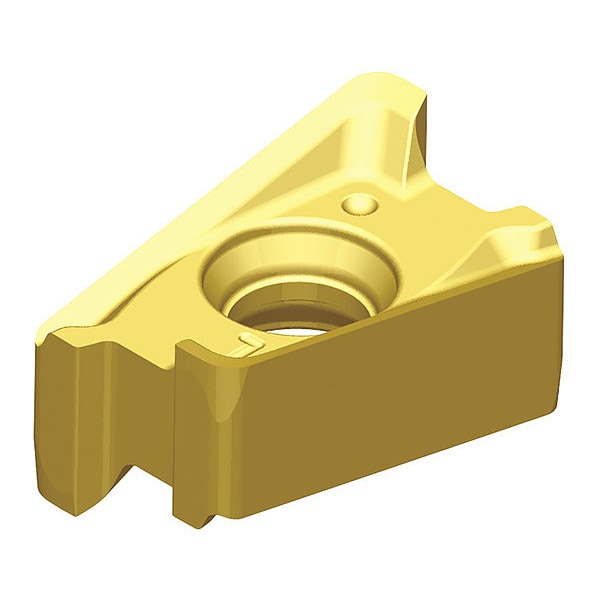

Widia Milling Insert, Rectangle, 10.83mm XNGU1002ERML - main

Milling Insert, Rectangle, 10.83mm

  • Mfr # XNGU1002ERML

  • Zoro # G3801559

product price: $20.89
/ea
Sold in multiples of 10 for $208.90

Key Features

Insert Thickness
0.1900"
Series
VSM490-10
Insert Shape
Rectangle
Grade
WU10PM
For Use With
VSM490-10 Series 0 Degrees /90 Degrees Shoulder Mills
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XNGU1002ERML
Zoro #
G3801559
UPC #
4059782468665
Country of Origin
Germany

Dimensions

Insert Thickness
0.1900"
Mounting Hole Dia.
3.40mm
Insert Size
100408
Through Hole Inside Dia.
3.40mm
Width
6.60mm
Cutting Edge Length
10.83mm
Thickness
0.1900 in
Corner Radius
1/32 in

Details

Series
VSM490-10
Item
Milling Insert
Insert Shape
Rectangle
Grade
WU10PM
For Use With
VSM490-10 Series 0 Degrees /90 Degrees Shoulder Mills
ISO Number
XNGU100408ERML
Lead Angle
75 Degrees
Insert Material
Carbide
Mounting Style
Taper Screw
Insert Style
XNGU
Cutting Direction
Right Hand
Chip-Breaker
Yes
Clearance Angle
0 Degrees
Chip-Breaker Style
Double Sided
Chip-Breaker Code
ML
Number of Cutting Edges
4
Shape
Rectangle
Hole Type
40 Degrees to 60 Degrees Double Countersink Hole
Finish - Machining
AlTiN
Measurement System
Fractional Inch
Wiper Insert
Yes
Primary Material Application ISO Code
H, K
Cutting Application
Milling
Included Angle
90 Degrees
Manufacturer Grade
WU10PM
ANSI Code
XNGU1002ERML
Primary Material Application
Cast Iron, Hardened Steel
Insert Holding Type
Taper Screw
Material - Machining
Carbide

Description

Milling Insert
