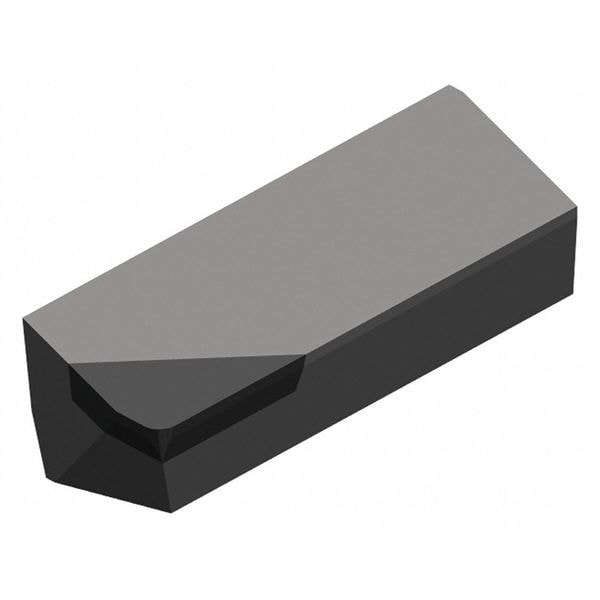

Widia Milling Insert, Rectangle SDR100031E0W4 - main

Milling Insert, Rectangle

  • Mfr # SDR100031E0W4

  • Zoro # G4760003

product price: $100.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Clamp
Hardened (H) Compatibility
No
Stainless (M) Compatibility
No
Insert Style
SDR
Non Ferrous (N) Compatibility
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SDR100031E0W4
Zoro #
G4760003
UPC #
-
Country of Origin
United States

Dimensions

Nose Radius
0.031"
Insert Size
100031
Insert Thickness
0.251"
Cutting Edge Length
7/8 in
Width
3/8 in
Thickness
0.2510 in
Corner Radius
1/32 in

Details

Mounting Style
Clamp
Item
Milling Insert
Hardened (H) Compatibility
No
Stainless (M) Compatibility
No
Insert Style
SDR
Non Ferrous (N) Compatibility
Yes
ANSI Number
SDR100031E0W4
ISO Number
SDR100031E0W4
Coating
Uncoated
Cutting Direction
Right Hand
Workpiece Compatibility
Nonferrous (N)
Insert Material
PCD
Lead Angle
0.25 Degrees ANSI, 89.75 Degrees ISO
Grade
WDN00U
Rake
Positive
For Use With
SuperFeed Series Face Mills
Steel (P) Compatibility
No
Cast Iron (K) Compatibility
No
Inscribed Circle
0.380 in
Super Alloy (S) Compatibility
No
Insert Application
Finishing
No. of Edges
1
Insert Shape
Rectangle
Chip-Breaker
No
Series
SuperFeed
Finish - Machining
Bright (Uncoated)
ANSI Code
SDR100031E0W4
Insert Holding Type
Clamp
Shape
Dov-Lok
Clearance Angle
5 Degrees
Number of Cutting Edges
1
Material - Machining
Diamond
Primary Material Application ISO Code
N, S
For Toolholder
WSSEM02502RH, WSSEM03203RH, WSSEM04004RH, WSSEM05005RH
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Titanium
Measurement System
Fractional Inch
Manufacturer Grade
WDN00U
Included Angle
90 Degrees
Cutting Application
Milling

Description

Milling Insert, Inscribed Circle 0.380 in, Rake Positive
