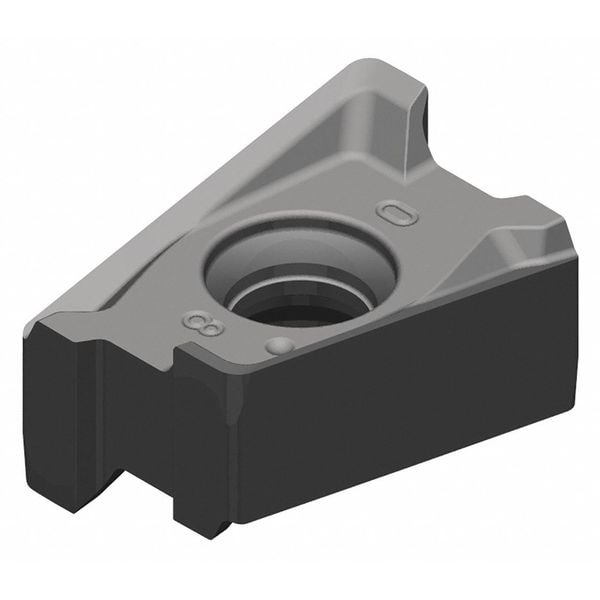

Widia Milling Insert, Rectangle XNGU1502ERML - main

Milling Insert, Rectangle

  • Mfr # XNGU1502ERML

  • Zoro # G4830782

product price: $27.19
/ea

Key Features

Lead Angle
75 Degrees
Hardened (H) Compatibility
No
Coating
Tin
Mounting Style
Screw Clamp
For Use With
VSM490-15 Series Shoulder Mills
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XNGU1502ERML
Zoro #
G4830782
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
15T608
Mounting Hole Dia.
4.65mm
Nose Radius
0.032"
Insert Thickness
0.271"
Cutting Edge Length
15.30mm
Thickness
0.2710 in
Corner Radius
1/32 in
Width
10.00mm
Through Hole Inside Dia.
4.65mm

Details

Lead Angle
75 Degrees
Hardened (H) Compatibility
No
Coating
Tin
Mounting Style
Screw Clamp
For Use With
VSM490-15 Series Shoulder Mills
Grade
WU35PM
No. of Edges
4
Non Ferrous (N) Compatibility
No
Insert Shape
Rectangle
Inscribed Circle
0.394 in
Stainless (M) Compatibility
Yes
Item
Milling Insert
Steel (P) Compatibility
No
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
No
Insert Style
XNGU
Rake
Positive
Cutting Direction
Right Hand
ANSI Number
XNGU1502ERML
Chip-Breaker
Yes
Insert Material
Carbide
Workpiece Compatibility
Stainless (M)
ISO Number
XNGU15T608ERML
Insert Application
Finishing
Series
VSM490-15
Clearance Angle
0 Degrees
Shape
Rectangle
Coating Process
PVD
Included Angle
90 Degrees
Material - Machining
Carbide
For Toolholder
VSM490D150Z05S050XN15, VSM490D200Z05S075XN15, VSM490D200Z06S075XN15, VSM490D250Z05S075XN15, VSM490D250Z06S075XN15, VSM490D250Z07S100XN15, VSM490D300Z07S100XN15, VSM490D300Z09S100XN15, VSM490D400Z08S150XN15, VSM490D400Z11S150XN15, VSM490D500Z09S150XN15, VSM490D500Z12S150XN15, VSM490D600Z10S200XN15
Insert Holding Type
Screw Clamp
ANSI Code
XNGU1502ERML
Primary Material Application ISO Code
M, P, S
Measurement System
Fractional Inch
Wiper Insert
Yes
Chip-Breaker Code
ML
Number of Cutting Edges
4
Chip-Breaker Style
Double Sided
Manufacturer Grade
WU35PM
Hole Type
40 Degrees to 60 Degrees Double Countersink Hole
Cutting Application
Milling
Finish - Machining
TiN
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium

Description

Milling Insert, Inscribed Circle 0.394 in, Rake Positive
