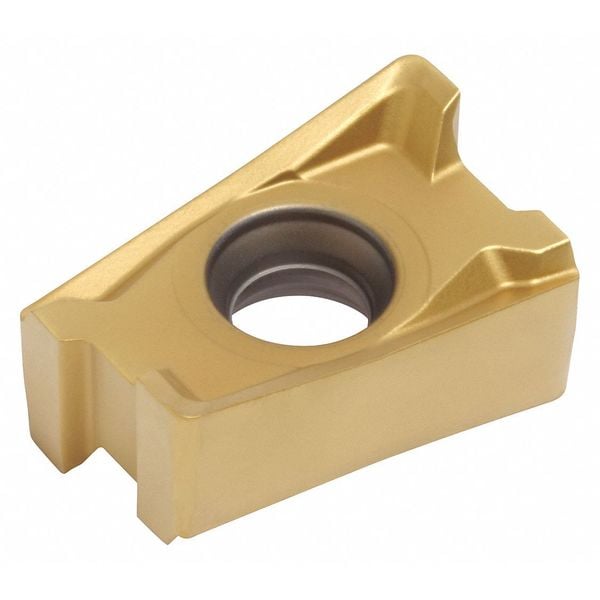

Widia Milling Insert, Rectangle XNGU1502SRMH - main

Milling Insert, Rectangle

  • Mfr # XNGU1502SRMH

  • Zoro # G4864489

product price: $30.29
/ea

Key Features

Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
For Use With
VSM490-15 Series Shoulder Mills
Cutting Direction
Right Hand
Insert Material
Carbide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XNGU1502SRMH
Zoro #
G4864489
UPC #
-
Country of Origin
Germany

Dimensions

Nose Radius
0.031"
Insert Size
15T608
Mounting Hole Dia.
4.65mm
Insert Thickness
0.271"
Through Hole Inside Dia.
4.65mm
Width
10.00mm
Cutting Edge Length
15.30mm
Thickness
0.2710 in
Corner Radius
1/32 in

Details

Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
For Use With
VSM490-15 Series Shoulder Mills
Cutting Direction
Right Hand
Insert Material
Carbide
Hardened (H) Compatibility
No
Steel (P) Compatibility
No
Mounting Style
Screw Clamp
ISO Number
XNGU15T608SRMH
Super Alloy (S) Compatibility
No
Chip-Breaker
Yes
Lead Angle
90 Degrees
Insert Shape
Rectangle
No. of Edges
4
Stainless (M) Compatibility
No
Rake
Positive
Item
Milling Insert
ANSI Number
XNGU1502SRMH
Insert Application
Roughing
Workpiece Compatibility
Cast Iron (K)
Coating
Al2O3
Grade
WP35CM
Inscribed Circle
0.394 in
Insert Style
XNGU
Series
VSM490-15
Insert Holding Type
Screw Clamp
Secondary Material Application
Stainless Steel
Measurement System
Fractional Inch
For Toolholder
VSM490D150Z05S050XN15, VSM490D200Z05S075XN15, VSM490D200Z06S075XN15, VSM490D250Z05S075XN15, VSM490D250Z06S075XN15, VSM490D250Z07S100XN15, VSM490D300Z07S100XN15, VSM490D300Z09S100XN15, VSM490D400Z08S150XN15, VSM490D400Z11S150XN15, VSM490D500Z09S150XN15, VSM490D500Z12S150XN15, VSM490D600Z10S200XN15
ANSI Code
XNGU1502SRMH
Chip-Breaker Code
MH
Wiper Insert
Yes
Secondary Material Application ISO Code
M
Cutting Application
Milling
Primary Material Application ISO Code
K, P
Shape
Rectangle
Hole Type
40 Degrees to 60 Degrees Double Countersink Hole
Primary Material Application
Cast Iron, Steel
Chip-Breaker Style
Double Sided
Clearance Angle
0 Degrees
Coating Process
CVD
Finish - Machining
Al2O3
Included Angle
90 Degrees
Number of Cutting Edges
4
Manufacturer Grade
WP35CM
Material - Machining
Carbide

Description

Milling Insert, Inscribed Circle 0.394 in, Rake Positive
