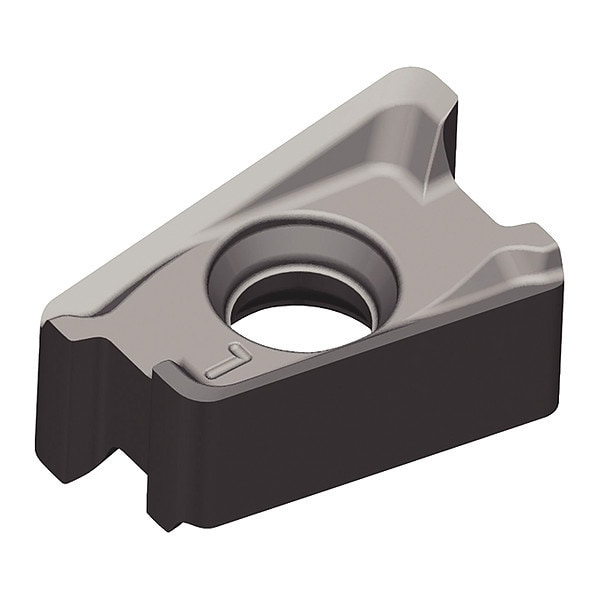

Widia Milling Insert, Rectangle, XNPU1002ERML - main

Milling Insert, Rectangle,

  • Mfr # XNPU1002ERML

  • Zoro # G3801802

product price: $16.99
/ea
Sold in multiples of 10 for $169.90

Key Features

Insert Material
Carbide
Mounting Style
Taper Screw
Insert Size
100408
Insert Thickness
0.1900"
Insert Style
XNPU
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XNPU1002ERML
Zoro #
G3801802
UPC #
4059782465978
Country of Origin
Germany

Dimensions

Insert Size
100408
Insert Thickness
0.1900"
Mounting Hole Dia.
3.40mm
Through Hole Inside Dia.
3.40mm
Corner Radius
1/32 in
Width
6.60mm
Thickness
0.1900 in

Details

Insert Material
Carbide
Mounting Style
Taper Screw
Insert Style
XNPU
For Use With
VSM490-10 Series 0 Degrees /90 Degrees Shoulder Mills
Insert Shape
Rectangle
Chip-Breaker
Yes
Item
Milling Insert
Lead Angle
75 Degrees
Grade
WS40PM
Series
VSM490-10
Cutting Direction
Right Hand
ISO Number
XNPU100408ERML
Shape
Rectangle
Chip-Breaker Style
Double Sided
Included Angle
90 Degrees
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Insert Holding Type
Taper Screw
Manufacturer Grade
WS40PM
Secondary Material Application ISO Code
P
Cutting Application
Milling
Primary Material Application ISO Code
M, S
Secondary Material Application
Steel
Finish - Machining
AlTiN
Material - Machining
Carbide
Hole Type
40 Degrees to 60 Degrees Double Countersink Hole
Chip-Breaker Code
ML
Primary Material Application
Nickel, Stainless Steel, Titanium
Number of Cutting Edges
4
ANSI Code
XNPU1002ERML

Description

Milling Insert
