  11. Modular Drill, 108.00mm Drill Depth
Widia Modular Drill, 108.00mm Drill Depth TDMX340R3SL40M - main

Modular Drill, 108.00mm Drill Depth

  • Mfr # TDMX340R3SL40M

  • Zoro # G3824464

product price: $1,105.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
ISO Number
TDMX340R3SL40M
Cutting Direction
Right Hand
Overall Length
237.00mm
Max. Dia.
35.9990mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDMX340R3SL40M
Zoro #
G3824464
UPC #
4061779043922
Country of Origin
Germany

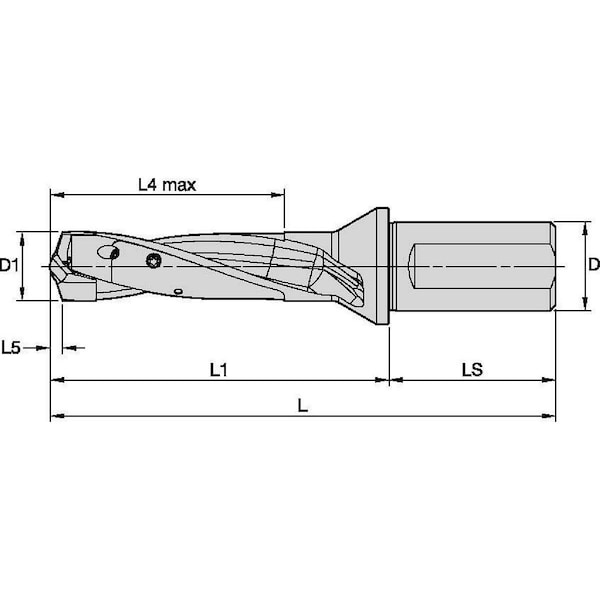

Dimensions

Diameter
40.00mm
Overall Length
237.00mm
Max. Dia.
35.9990mm
Body Length
70.00mm
Max. Drilling Depth
36.00mm
Shank Length
70.00mm
Shank Dia. Measurement System
Metric
Depth x Dia. Ratio
3xD
Shank Dia.
40.00mm
Min. Drill Dia.
34.00mm
Flute Length
108.00mm
Seat Size
R
Max. Drill Dia.
108.00mm

Description

Exchangeable Drill Tip, TDMX, Shank Type - Machining Round with Flat and Side Lock, High Speed Steel
