Widia Modular Drill, 90.00mm Drill Depth TDMX290R3SL32M - main

Modular Drill, 90.00mm Drill Depth

  • Mfr # TDMX290R3SL32M

  • Zoro # G3823825

product price: $902.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
ISO Number
TDMX290R3SL32M
Cutting Direction
Right Hand
Overall Length
200.00mm
Max. Dia.
29.9990mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDMX290R3SL32M
Zoro #
G3823825
UPC #
4061779043366
Country of Origin
Germany

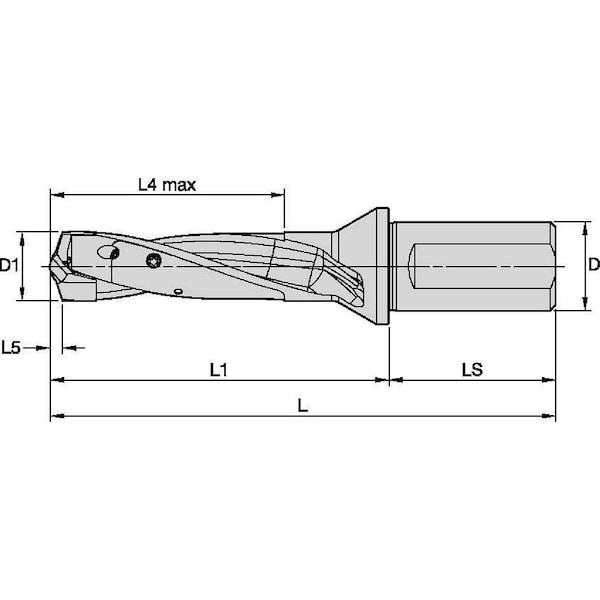

Dimensions

Diameter
32.00mm
Overall Length
200.00mm
Max. Dia.
29.9990mm
Body Length
60.00mm
Depth x Dia. Ratio
3xD
Shank Dia.
32.00mm
Seat Size
N
Flute Length
90.00mm
Min. Drill Dia.
29.00mm
Shank Dia. Measurement System
Metric
Max. Drilling Depth
30.00mm
Shank Length
60.00mm
Max. Drill Dia.
90.00mm

Description

Exchangeable Drill Tip, TDMX, Shank Type - Machining Round with Flat and Side Lock, High Speed Steel
