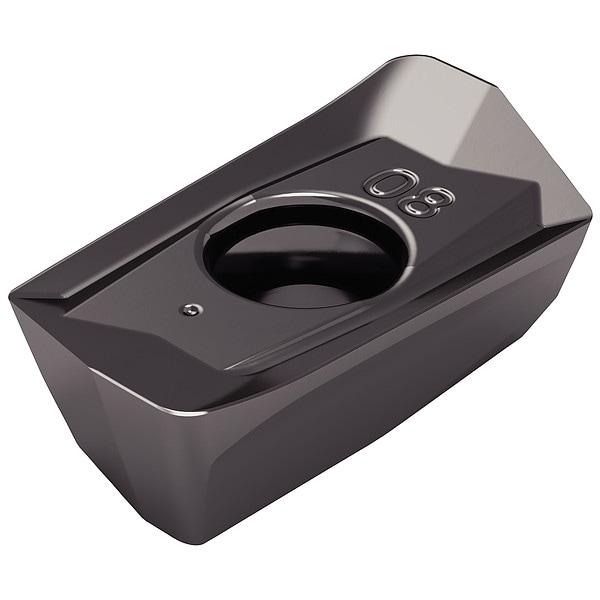

Parallelogram Milling Inserts, Style XDPT
Mfr # XDPT1702SRMU WU20PM
Zoro # G505968406
product price: $16.39
/eaSold in multiples of 10 for $163.90
Key Features
Insert Style
XDPT
Cutting Direction
Right Hand
Lead Angle
90 Degrees
ISO Number
XDPT110408PDSRMU
For Use With
0 Degrees /90 Degrees Shoulder Mills
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
XDPT1702SRMU WU20PM
Zoro #
G505968406
UPC #
-
Country of Origin
India
Dimensions
Corner Radius
0.031 in
Thickness
0.163 in
Cutting Edge Length
0.7540 in
Details
Insert Style
XDPT
Cutting Direction
Right Hand
Lead Angle
90 Degrees
ISO Number
XDPT110408PDSRMU
For Use With
0 Degrees /90 Degrees Shoulder Mills
Item
Parallelogram Milling Inserts
Coating Process
PVD
Clearance Angle
15 Degrees
Manufacturer Grade
WU20PM
Primary Material Application
Stainless Steel, Steel
Number of Cutting Edges
2
Chip-Breaker Code
MU
Secondary Material Application
Cast Iron, Hardened Material, High-Temperature Alloy, Non-Ferrous
Measurement System
Decimal Inch
Finish - Machining
TiAlN
Secondary Material Application ISO Code
H, K, N, S
ANSI Code
XDPT1702SRMU
Primary Material Application ISO Code
M, P
Cutting Application
Milling
Description
Parallelogram Milling Inserts, XDPT1702SRMU, MU, 15 Degrees
