  11. Pipe Tap, 1/8"-27, Taper, 4 Flutes, NPT

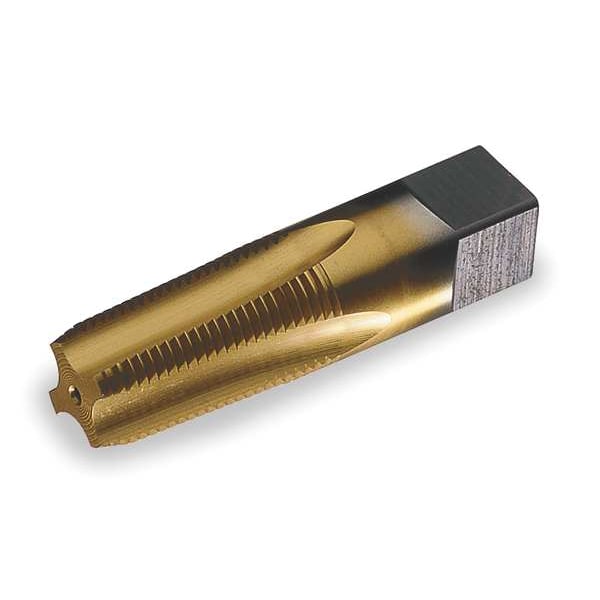

Widia Pipe Tap, 1/8"-27, Taper, 4 Flutes, NPT 19702 - main

Pipe Tap, 1/8"-27, Taper, 4 Flutes, NPT

  • Mfr # 19702

  • Zoro # G3024341

product price: $41.39
/ea

Key Features

Tap Thread Size
1/8"-27
Tap Chamfer
Taper
Number of Flutes
4
Tap Thread Type
NPT
Pitch Diameter Limit
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
19702
Zoro #
G3024341
UPC #
-
Country of Origin
United States

Dimensions

Tap Thread Size
1/8"-27
Pitch Diameter Limit
Not Rated
Overall Length
2-1/8"
Tap Dimension Type
Pipe
Tap Size
1/8"
Thread Length
3/4"
Shank Dia.
0.437"
75% Thread Drill Size
Q
Tap Length Standard
USCTI
Shank Length
1 3/8 in
Square Size
0.3280 in
Drill Bit Size
Q
Thread Size
1/8"-27
Size
1/8"

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
4
Tap Thread Type
NPT
Tap Finish
TiN
Tap Style
Pipe
List Number
2320
Number of Pieces
1
Thread Direction
Right Hand
Standards
ANSI, USCTI
Tap Material
High Speed Steel
Tap Grouping
Tap
Cutting Direction - Machining
Right Hand
Series
2320/5320
Interrupted Thread
No
Secondary Material Application ISO Code
K, M, N
Extended Neck
No
Primary Material Application ISO Code
P
Threads per Inch
27
Thread Limit
H4
Material Grade - Machining
2320
Thread Standard
NPTF
Coolant Fed
Non-Coolant Through
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Max. Projection
0.3120 in
Tap Shank Standard
USCTI
Primary Material Application
Steel
Measurement System
Fractional Inch
Helix Angle
0 Degrees

Description

Pipe and Conduit Thread Tap, Thread Size 1/8 In.-27, NPTF, Overall Length 2 1/8 in, High Speed Steel, TiN, Right Hand, Thread Length 3/4 in, 75 Percent Thread Drill Size Q, Thread Limit H4, Class of Fit Not Applicable, Number of Flutes 4
