Shop WIDIA

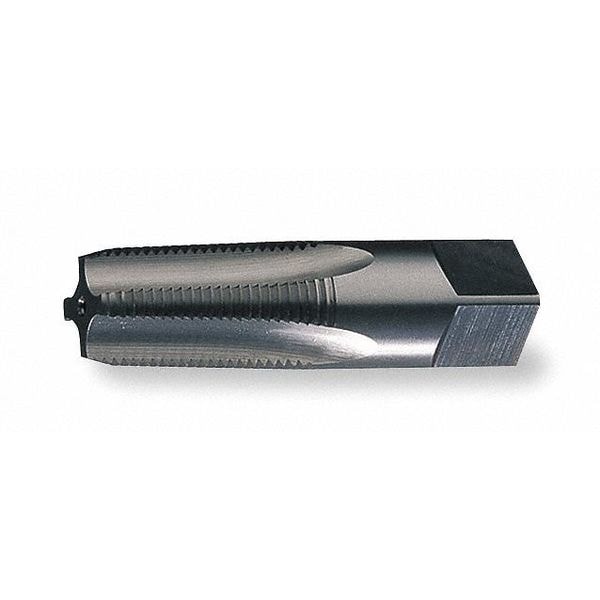

Pipe Tap, 2"-11-1/2, Taper, 7 Flutes, NPT

  • Mfr # 16243

  • Zoro # G1913597

product price:  $427.99
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
2"-11-1/2
Tap Chamfer
Taper
Number of Flutes
7
Tap Thread Type
NPT
Tap Grouping
Tap
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16243
Zoro #
G1913597
UPC #
-
Country of Origin
Italy

Dimensions

Tap Thread Size
2"-11-1/2
Pitch Diameter Limit
Not Rated
Shank Dia.
1.875"
Thread Length
1-3/4"
Tap Size
2"
Tap Dimension Type
Pipe
Overall Length
4-1/4"
75% Thread Drill Size
2-3/16 in
Tap Length Standard
USCTI
Drill Bit Size
2 3/16 in
Thread Size
2"-11.5
Square Size
1.4062 in
Shank Length
2 1/2 in
Size
2"
Square Width
1.41 in
Square Length
1.41 in
Shank Diameter
1 7/8 in
Wire Rope Length
4 1/4 in

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
7
Tap Thread Type
NPT
Tap Grouping
Tap
Thread Direction
Right Hand
Standards
ANSI, USCTI
Tap Style
Pipe
Number of Pieces
1
List Number
5320
Tap Finish
Bright (Uncoated)
Tap Material
High Speed Steel
Cutting Direction - Machining
Right Hand
Series
2320/5320
Material Grade - Machining
5320
Thread Standard
ANPT, NPT
Measurement System
Fractional Inch
Interrupted Thread
No
Extended Neck
No
Helix Angle
0 Degrees
Threads per Inch
11.5
Max. Projection
0.6670 in
Tap Shank Standard
USCTI
Primary Material Application
Aluminum, Brass, Bronze, Copper
Thread Limit
H2
Primary Material Application ISO Code
N
Coolant Fed
Non-Coolant Through
Shank Type
Square
Maximum Projection
43/64 in
Flute Type
Straight

Description

Pipe and Conduit Thread Tap, Thread Size 2 In.-11 1/2, NPT, Overall Length 4 1/4 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 3/4 in, 75 Percent Thread Drill Size 2-3/16 in, Thread Limit H2, Number of Flutes 7

Restrictions

WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
