Shop WIDIA

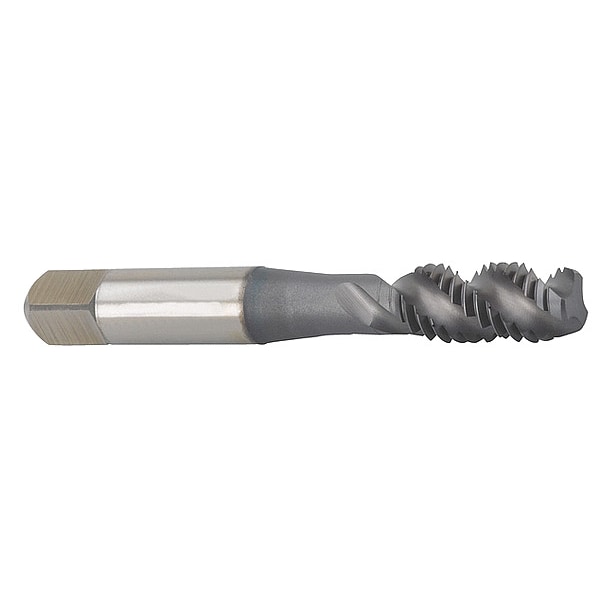

Spiral Flute Tap, #10-32, 2 Flutes, UNF

  • Mfr # VTSFT-TC5035

  • Zoro # G3785763

product price:
$
32.99
/ea

Key Features

Overall Length
2.3800"
Tap Style
Spiral Flute
Tap Size
#10
Shank Dia.
0.1940"
Tap Dimension Type
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VTSFT-TC5035
Zoro #
G3785763
UPC #
4056544554888
Country of Origin
United States

Dimensions

Overall Length
2.3800"
Tap Size
#10
Shank Dia.
0.1940"
Tap Dimension Type
Inch
Tap Thread Size
#10-32
Thread Length
1/2"
Thread Size
#10-32
75% Thread Drill Size
#21
Pitch Diameter Limit
D3
Shank Diameter
3/16 in
Wire Rope Length
2 3/8 in
Length
2 3/8 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Semi-Bottoming
Tap Material
High Speed Steel
Number of Flutes
2
Measurement System
Pipe
Tap Thread Type
UNF
Standards
DIN-ANSI
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Thread Limit
H5
Material Grade - Machining
WN44EG
Coolant Fed
Non-Coolant Through
Thread Standard
UNF
Class of Fit
3B
Tap Application
Blind Hole
Features
For Tension & Compression Holders
Helix Angle
45 Degrees
Primary Material Application ISO Code
K, M, N, P
List Number
VTSFT-TC50
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Shank Type
Square
Tap Finish
TiCN

Description

Spiral Flute Tap, Thread Size #10-32, UNF, Overall Length 2 3/8 in, HSS-E, Thread Length 1/2 in, 75 Percent Thread Drill Size #21, Thread Limit H5, Class of Fit 3B, Thread Direction Right Hand, Number of Flutes 2
