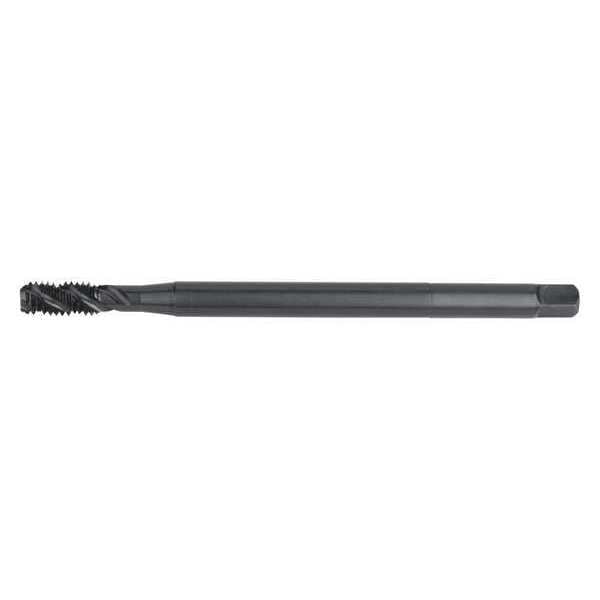

Widia Spiral Flute Tap Bottoming, 3 Flutes VTSFT-TC5430 - main

Spiral Flute Tap Bottoming, 3 Flutes

  • Mfr # VTSFT-TC5430

  • Zoro # G7669280

product price: $52.19
/ea

Key Features

Tap Style
Spiral Flute
Shank Dia.
0.255"
Tap Chamfer
Bottoming
Tap Dimension Type
Inch
Tap Material
High Speed Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VTSFT-TC5430
Zoro #
G7669280
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
6"
Shank Dia.
0.255"
Tap Dimension Type
Inch
Tap Size
1/4"
Thread Length
5/8"
Tap Thread Size
1/4"-28
Square Size
0.1890 in
75% Thread Drill Size
5.45 mm
65% Thread Drill Size
7/32 in
55% Thread Drill Size
5.70 mm
Thread Size
1/4"-28
Shank Length
1 1/2 in
Pitch Diameter Limit
H3

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Tap Finish
Oxide
Thread Direction
Right Hand
Tap Grouping
Tap
Standards
ANSI 6" Extension
Tap Thread Type
UNC
Cutting Direction - Machining
Right Hand
Coolant Fed
Non-Coolant Through
Material Grade - Machining
WP49EG
Thread Limit
H3
Thread Standard
Metric
Secondary Material Application ISO Code
K, M, P
Measurement System
Fractional Inch
Series
VT-SFT
Helix Angle
45 Degrees
Secondary Material Application
Cast Iron, Stainless Steel, Steel
Threads per Inch
28
Tap Shank Standard
ANSI
Shank Type - Machining
Straight
Extended Neck
Yes
Spiral Direction
Right Hand
Features
Form C Semi-Bottoming Chamfer, Tension/Compression Holders
Class of Fit
3B
List Number
VT-SFT
Number of Pieces
1

Description

Spiral Flute Tap, Thread Size 1/4 In.-28, Metric, Overall Length 6 in, High Speed Steel, Black Oxide, Right Hand, 28
