  11. Spiral Flute Tap, Bottoming, 3

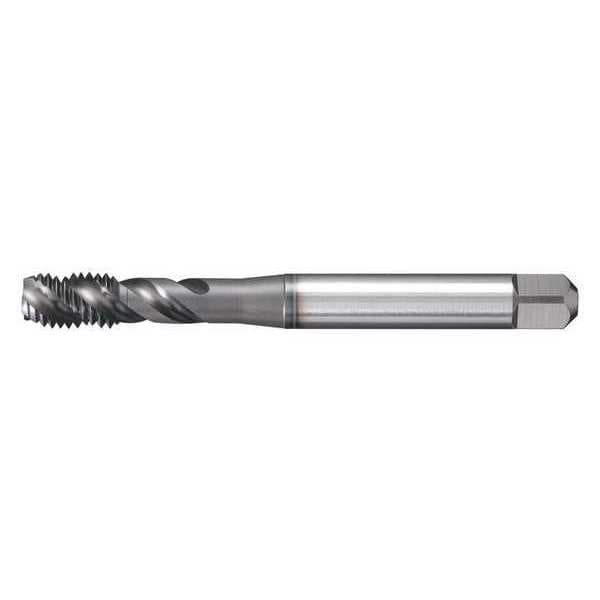

Widia Spiral Flute Tap, Bottoming, 3 GT325004 - main

Spiral Flute Tap, Bottoming, 3

  • Mfr # GT325004

  • Zoro # G7700406

product price: $82.39
/ea
Free Shipping & Returns

Key Features

Overall Length
100.10mm
Tap Style
Spiral Flute
Shank Dia.
10.00mm
Tap Chamfer
Bottoming
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GT325004
Zoro #
G7700406
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
100.10mm
Shank Dia.
10.00mm
Tap Dimension Type
Metric
Tap Size
M10
Thread Length
15.10mm
Pitch Diameter Limit
6HX
Tap Thread Size
M10-1.50
Square Size
8.00mm
55% Thread Drill Size
8.90 mm
75% Thread Drill Size
8.50 mm
Thread Size
M10x1.5
Shank Length
61.00 mm
65% Thread Drill Size
11/32 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Thread Direction
Right Hand
Tap Grouping
Tap
Tap Finish
TiCN
List Number
GT32
Standards
DIN 371
Number of Pieces
1
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Series
GT32
Features
Form E Bottoming Chamfer
Secondary Material Application
Cast Iron
Tap Shank Standard
DIN 371
Extended Neck
Yes
Primary Material Application
Steel
Shank Type - Machining
Straight
Measurement System
Metric
Thread Pitch
1.50mm
Powdered Metal Base Material
Cobalt
Secondary Material Application ISO Code
K
Thread Limit
6HX
Material Grade - Machining
GP6520
Thread Standard
Metric
Primary Material Application ISO Code
P
Coolant Fed
Non-Coolant Through
Helix Angle
45 Degrees
Spiral Direction
Right Hand
Class of Fit
6HX

Description

Spiral Flute Tap, Thread Size M10x1.5, Metric, Overall Length 100.1 mm, Powdered Metal, TiCN, Thread Length 15.1 mm, 75 Percent Thread Drill Size 8.50 mm, Thread Limit 6HX, Class of Fit 6HX, Thread Direction Right Hand, Number of Flutes 3
