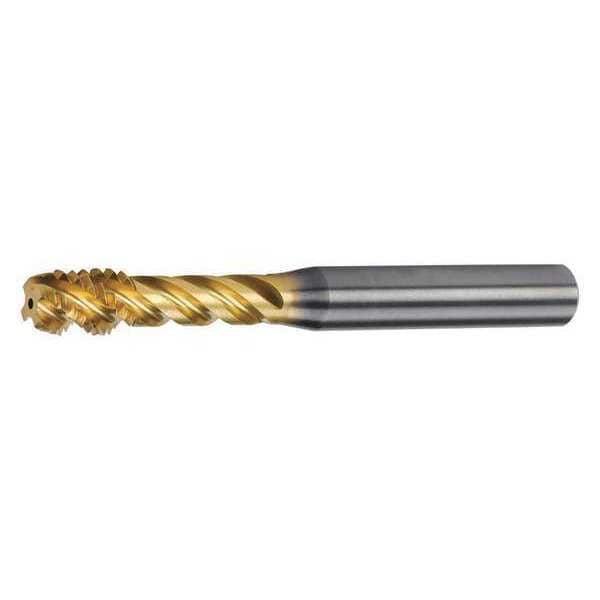

Spiral Flute Tap, M12-1.75, Semi-Bottoming, 4 Flutes, UNF
Mfr # 12785
Zoro # G7673622
product price:Â
$
277.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100.00mm
Number of Flutes
4
Tap Material
High Speed Steel
Shank Dia.
12.00mm
Tap Style
Spiral Flute
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 12785
- Zoro #
- G7673622
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 100.00mm
- Shank Dia.
- 12.00mm
- Tap Size
- M12
- Tap Dimension Type
- Metric
- Thread Length
- 14.00mm
- Tap Thread Size
- M12-1.75
- Thread Size
- M12x1.75
- Square Size
- 0.2750 in
- 75% Thread Drill Size
- 10.30 mm
- 55% Thread Drill Size
- 27/64 in
- Shank Length
- 45.50 mm
- 65% Thread Drill Size
- 10.50 mm
- Pitch Diameter Limit
- 6HX
- Shank Diameter
- 12 mm
- Square Width
- 0.275 in
- Square Length
- 0.275 in
- Wire Rope Length
- 100 mm
- Length
- 100 mm
Description
Spiral Flute Tap, Thread Size M12x1.75, Metric, Overall Length 100 mm, High Speed Steel, TiAlN, Thread Length 14 mm, 75 Percent Thread Drill Size 10.30 mm, Thread Limit D1, Thread Direction Right Hand, Number of Flutes 4
