Shop All Spiral Flute 2-Flute Taps
Widia

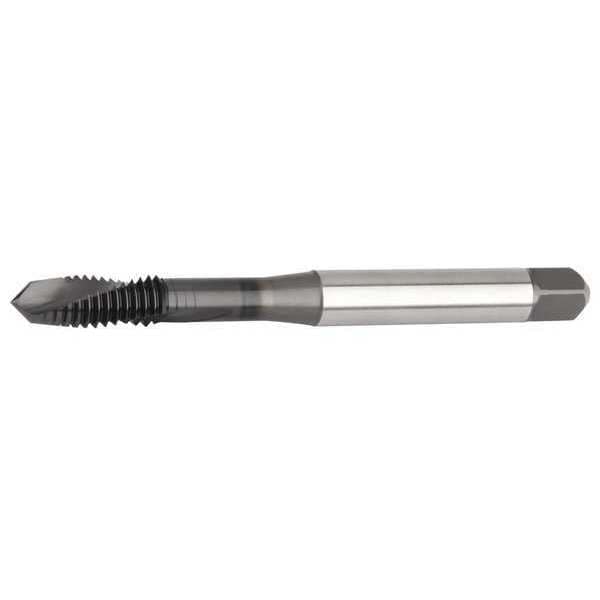

Spiral Flute Tap, Plug 2 Flutes

product price: $24.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tap Thread Size 3/8"-16
  • Tap Chamfer Plug
  • Number of Flutes 2
  • Tap Finish TiN+CrC/C
  • Thread Length 3/4 in
See all product information

Product Information

Dimensions

Tap Thread Size 3/8"-16
Thread Length 3/4 in
Overall Length 3 15/16 in
Shank Dia. 3/8 in
Tap Size 3/8"
55% Thread Drill Size 8.40 mm
75% Thread Drill Size 5/16 in
Tap Length Standard DIN
Thread Size 3/8"-16
Shank Length 2 1/32 in
65% Thread Drill Size P
Square Size 0.2840 in

Details

Item Spiral Flute Tap
Tap Chamfer Plug
Number of Flutes 2
Tap Finish TiN+CrC/C
Tap Style Spiral Flute
Thread Direction Right Hand
Tap Material HSS-E
Standards DIN-ANSI
Cutting Direction - Machining Right Hand
Shank Type - Machining Straight
Extended Neck No
Series GT72
Coolant Fed Non-Coolant Through
Primary Material Application ISO Code N
Thread Standard UNC
Threads per Inch 16
Features WN44EG TiN + CrC/C for aluminum.
Measurement System Fractional Inch
Material Grade - Machining WS30MG
Spiral Direction Left Hand
Helix Angle 20 Degrees
Primary Material Application Aluminum, Brass, Bronze, Copper
Thread Limit H3
Tap Shank Standard ANSI, DIN
Class of Fit 3B

Description

Spiral Flute Tap, Thread Size 3/8 In.-16, UNC, Overall Length 3 15/16 in, HSS-E, TiN+CrC/C, Thread Length 3/4 in, 75 Percent Thread Drill Size 5/16 in, Thread Limit H3, Class of Fit 3B, Thread Direction Right Hand, Number of Flutes 2
