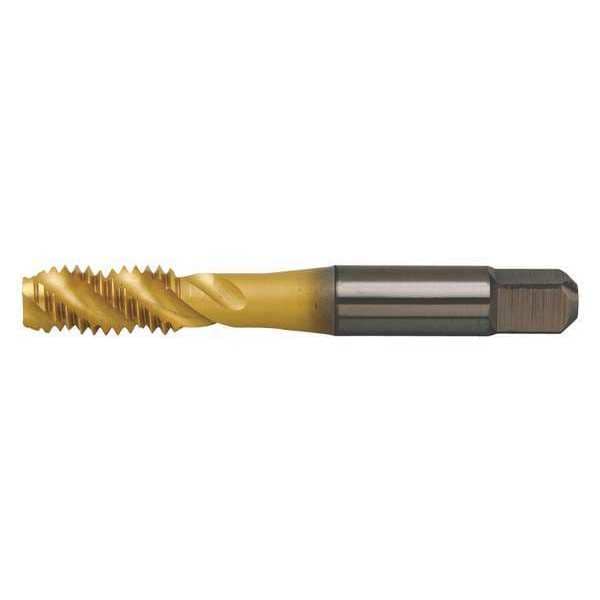

Spiral Flute Tap, Semi-Bottoming, 3

  • Mfr # VTSFT7506

  • Zoro # G7663610

product price:  $35.15
/ea

Key Features

Overall Length
52.00mm
Tap Style
Spiral Flute
Shank Dia.
5.00mm
Tap Chamfer
Semi-Bottoming
Tap Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VTSFT7506
Zoro #
G7663610
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
52.00mm
Shank Dia.
5.00mm
Tap Dimension Type
Metric
Tap Size
M4
Thread Length
13.00mm
Tap Thread Size
M4-0.70
75% Thread Drill Size
3.30 mm
55% Thread Drill Size
3.50 mm
Square Size
4.00mm
Shank Length
23.30 mm
65% Thread Drill Size
3.40 mm
Thread Size
M4x0.7
Tap Length Standard
JIS
Pitch Diameter Limit
Not Rated
Shank Diameter
5 mm
Square Width
4 mm
Square Length
4 mm
Wire Rope Length
52 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Semi-Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Tap Thread Type
UNC
Standards
JIS
Tap Grouping
Tap
Thread Direction
Right Hand
Tap Finish
TiN
Cutting Direction - Machining
Right Hand
Material Grade - Machining
WU41EG
Primary Material Application ISO Code
P
Helix Angle
45 Degrees
Thread Standard
Metric
Features
Form C Semi-Bottoming Chamfer, Multipurpose Tap
Spiral Direction
Right Hand
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Thread Pitch
0.70mm
Coolant Fed
Non-Coolant Through
Measurement System
Metric
Secondary Material Application ISO Code
K, M, N
Primary Material Application
Steel
Tap Shank Standard
JIS
Extended Neck
Yes
Shank Type - Machining
Straight
Series
VT-SFT
Thread Limit
ISO/2
Class of Fit
ISO/2
Number of Pieces
1
List Number
VT-SFT
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M4x0.7, Metric, Overall Length 52 mm, High Speed Steel, TiN, Thread Length 13 mm, 75 Percent Thread Drill Size 3.30 mm, Class of Fit ISO/2, Thread Direction Right Hand, Number of Flutes 3
