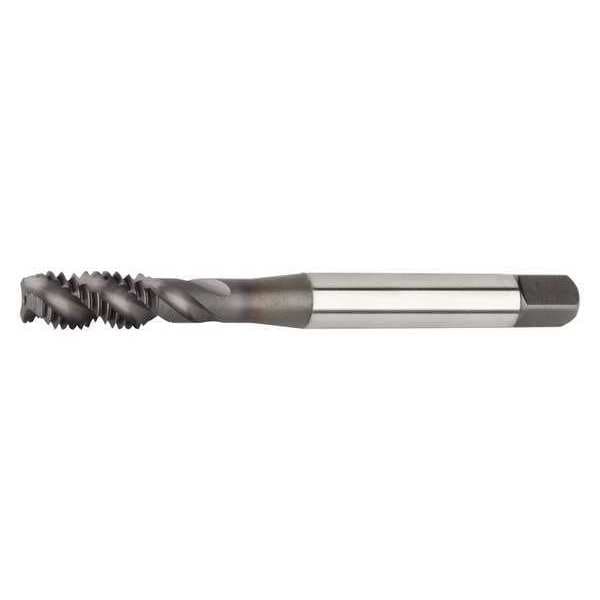

Spiral Flute Tap, Semi-Bottoming, 3
Mfr # VTSFT9764
Zoro # G7664968
product price:Â
$
77.29
/ea
Key Features
Overall Length
3-35/64"
Tap Style
Spiral Flute
Shank Dia.
0.318"
Tap Chamfer
Semi-Bottoming
Tap Dimension Type
Inch
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VTSFT9764
- Zoro #
- G7664968
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 3-35/64"
- Shank Dia.
- 0.318"
- Tap Dimension Type
- Inch
- Tap Size
- 5/16"
- Thread Length
- 19/32"
- Pitch Diameter Limit
- 2B
- Tap Thread Size
- 5/16"-18
- 65% Thread Drill Size
- 17/64 in
- Shank Length
- 1 27/32 in
- 55% Thread Drill Size
- I
- Thread Size
- 5/16"-18
- Square Size
- 0.2360 in
- 75% Thread Drill Size
- F
- Tap Length Standard
- DIN
- Square Width
- 0.236 in
- Shank Diameter
- 5/16 in
- Square Length
- 0.236 in
- Wire Rope Length
- 3 35/64 in
- Length
- 3 35/64 in
Description
Spiral Flute Tap, Thread Size 5/16 In.-18, UNC, Overall Length 3 35/64 in, Carbide, TiCN, Thread Length 19/32 in, 75 Percent Thread Drill Size F, Thread Limit 2B, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 3
