  11. Spiral Flute Tap, Semi-Bottoming, 4

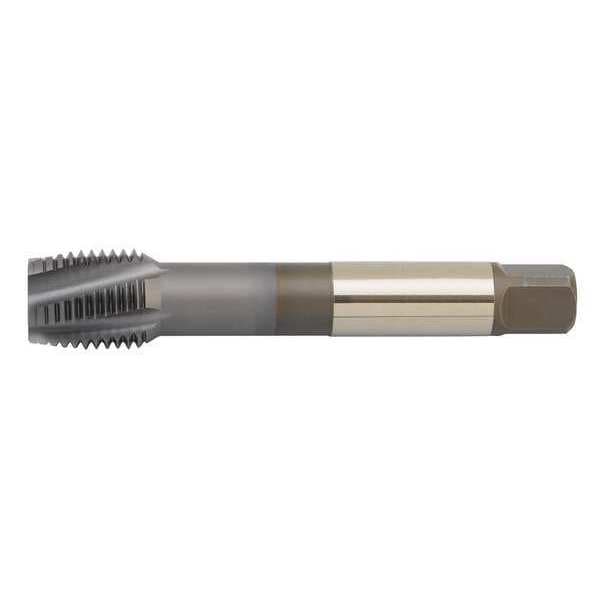

Widia Spiral Flute Tap, Semi-Bottoming, 4 GT315033 - main

Spiral Flute Tap, Semi-Bottoming, 4

  • Mfr # GT315033

  • Zoro # G7652535

product price: $189.99
/ea
Free Shipping & Returns

Key Features

Overall Length
110.00mm
Number of Flutes
4
Tap Material
High Speed Steel
Shank Dia.
12.00mm
Tap Style
Spiral Flute
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GT315033
Zoro #
G7652535
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
110.00mm
Shank Dia.
12.00mm
Tap Size
M16
Tap Dimension Type
Metric
Tap Thread Size
M16-2.00
Thread Length
20.00mm
Square Size
9.00mm
Thread Size
M16x2
Shank Length
59.00 mm
55% Thread Drill Size
14.50 mm
75% Thread Drill Size
14.00 mm
65% Thread Drill Size
9/16 in
Pitch Diameter Limit
6HX

Details

Item
Spiral Flute Tap
Number of Flutes
4
Tap Material
High Speed Steel
Tap Style
Spiral Flute
Tap Chamfer
Semi-Bottoming
Tap Grouping
Tap
Tap Finish
TiCN
Standards
DIN 376
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Helix Angle
45 Degrees
Secondary Material Application ISO Code
K
Features
High Performance Taps
Secondary Material Application
Cast Iron
Primary Material Application ISO Code
P
Tap Shank Standard
DIN 376
Coolant Fed
Coolant Through
Powdered Metal Base Material
Cobalt
Measurement System
Metric
Shank Type - Machining
Straight
Series
GT31
Thread Limit
6HX
Thread Standard
Metric
Thread Pitch
2.00mm
Primary Material Application
Steel
Spiral Direction
Right Hand
Extended Neck
Yes
Class of Fit
6HX
Number of Pieces
1
List Number
GT31

Description

Spiral Flute Tap, Thread Size M16x2, Metric, Overall Length 110 mm, Powdered Metal, TiCN, Thread Length 20 mm, 75 Percent Thread Drill Size 14.00 mm, Thread Limit 6HX, Class of Fit 6HX, Thread Direction Right Hand, Number of Flutes 4
