Shop WIDIA

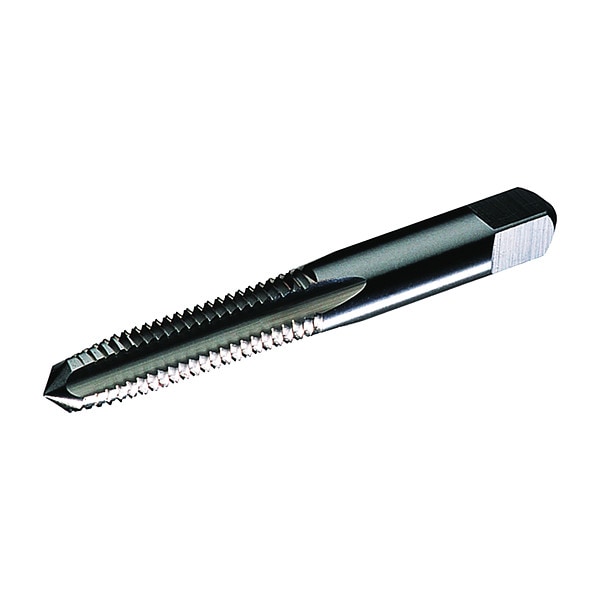

Spiral Point Tap, #10-32, Bottom, UNJF, 2 Flutes, TiN

  • Mfr # 15435

  • Zoro # G3795922

product price:  $13.19
/ea

Key Features

Tap Style
Spiral Point
Tap Size
0.1900"
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Chamfer
Bottoming
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
15435
Zoro #
G3795922
UPC #
4021169513558
Country of Origin
Multiple

Dimensions

Tap Size
0.1900"
Tap Dimension Type
Inch
Overall Length
2.3600"
Thread Length
1/2"
Tap Thread Size
#10-32
Shank Dia.
4.9280"
Square Size
0.3280 in
Shank Length
1 3/8 in
Thread Size
1/8"-28
Pitch Diameter Limit
H6
Shank Diameter
0.438 in
Square Length
0.33 in
Square Width
0.33 in

Details

Item
Spiral Point Tap
Tap Style
Spiral Point
Tap Material
High Speed Steel
Tap Chamfer
Bottoming
Number of Flutes
2
Tap Finish
TiN
Tap Thread Type
UNJF
Thread Direction
Left Hand
Standards
ANSI
Thread Standard
BSPT
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Extended Neck
Yes
Measurement System
Fractional Inch
Thread Limit
H6
Material Grade - Machining
WU40EG
Spiral Direction
Neutral
Threads per Inch
28
Helix Angle
0 Degrees
Primary Material Application ISO Code
N
Primary Material Application
Aluminum, Brass, Bronze, Copper
Shank Type
Straight

Description

Pipe and Conduit Thread Tap, Thread Size 1/8 In.-28, BSPT (R/Rc/Rp), Overall Length 2 1/8 in, High Speed Steel, Left Hand, Thread Length 3/4 in, Thread Limit H6, Number of Flutes 4
