Shop WIDIA

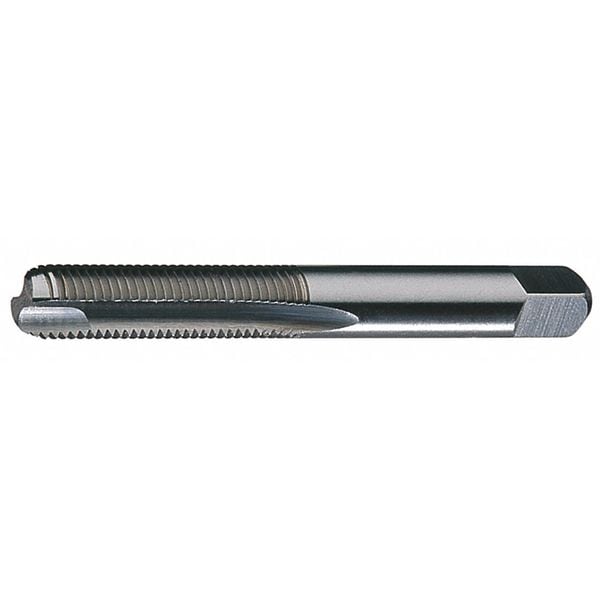

Spiral Point Tap, Bottoming 2 Flutes

  • Mfr # 13639

  • Zoro # G7698525

product price:
$
13.19
/ea

Key Features

Shank Dia.
0.255"
Tap Material
High Speed Steel
Tap Dimension Type
Inch
Tap Chamfer
Bottoming
Tap Size
1/4"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
13639
Zoro #
G7698525
UPC #
-
Country of Origin
Multiple

Dimensions

Shank Dia.
0.255"
Tap Dimension Type
Inch
Tap Size
1/4"
Overall Length
2 1/2 in
Pitch Diameter Limit
H3
Thread Length
1"
Tap Thread Size
1/4"-28
75% Thread Drill Size
5.45 mm
55% Thread Drill Size
5.70 mm
Square Size
0.1910 in
Shank Length
1 1/2 in
Thread Size
1/4"-28
65% Thread Drill Size
7/32 in
Square Length
0.191 in
Square Width
0.191 in
Shank Diameter
1/4 in
Wire Rope Length
2 1/2 in
Length
2 1/2 in

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Chamfer
Bottoming
Tap Style
Spiral Point
Number of Flutes
2
Tap Grouping
Tap
Tap Thread Type
UNC
Number of Pieces
1
List Number
5302
Tap Finish
Bright (Uncoated)
Standards
ANSI
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
5302
Threads per Inch
28
Primary Material Application
Steel
Secondary Material Application ISO Code
K, M, N
Thread Limit
H3
Thread Standard
UNF
Extended Neck
Yes
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Primary Material Application ISO Code
P
Shank Type - Machining
Straight
Class of Fit
6H
Coolant Fed
Non-Coolant Through
Spiral Direction
Neutral
Measurement System
Fractional Inch
Helix Angle
0 Degrees
Shank Type
Square
Tap Application
Through Hole

Description

Spiral Point Tap, Thread Size 1/4 In.-28, UNF, Overall Length 2 1/2 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 in, 75 Percent Thread Drill Size 5.45 mm, Thread Limit H3, Class of Fit 6H, Number of Flutes 2
