Shop WIDIA

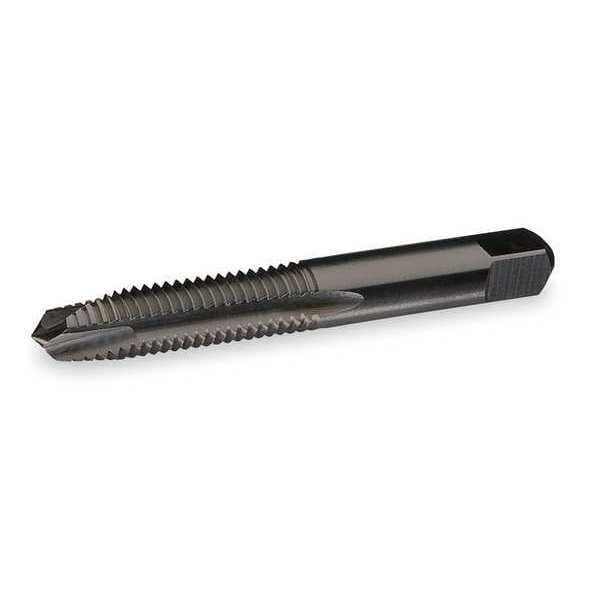

Spiral Point Tap, Plug, 2

  • Mfr # 13131

  • Zoro # G0907995

product price:  $9.89
/ea

Key Features

Shank Dia.
0.141"
Tap Material
Vanadium High Speed Steel
Tap Dimension Type
Inch
Tap Chamfer
Plug
Tap Size
#6
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
13131
Zoro #
G0907995
UPC #
-
Country of Origin
Multiple

Dimensions

Shank Dia.
0.141"
Tap Dimension Type
Inch
Tap Size
#6
Overall Length
2 in
Thread Length
11/16"
Tap Thread Size
#6-32
Size
#6
Square Size
0.1100 in
65% Thread Drill Size
#34
75% Thread Drill Size
#36
Thread Size
#6-32
55% Thread Drill Size
#32
Shank Length
1 9/32 in
Pitch Diameter Limit
H2
Shank Diameter
9/64 in
Square Length
0.11 in
Square Width
0.11 in

Details

Item
Spiral Point Tap
Tap Material
Vanadium High Speed Steel
Tap Chamfer
Plug
Tap Style
Spiral Point
Number of Flutes
2
Standards
ANSI
Tap Grouping
Tap
Tap Finish
Black Oxide
Thread Direction
Right Hand
Tap Thread Type
UNC
Series
5301/2301
Cutting Direction - Machining
Right Hand
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Stainless Steel, Steel, Titanium
Thread Limit
H2
Threads per Inch
32
Extended Neck
No
Spiral Direction
Neutral
Shank Type - Machining
Straight
Measurement System
Pipe
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
K, M, N, P, S
Thread Standard
UNC
Class of Fit
H3
Helix Angle
0 Degrees
List Number
5301S
Number of Pieces
1
Shank Type
Square
Tap Application
Through Hole

Description

Spiral Point Tap, Thread Size #6-32, UNC, Overall Length 2 in, High Speed Steel, Black Oxide, Right Hand, Thread Length 11/16 in, 75 Percent Thread Drill Size #36, Thread Limit H2, Class of Fit H3, Number of Flutes 2
