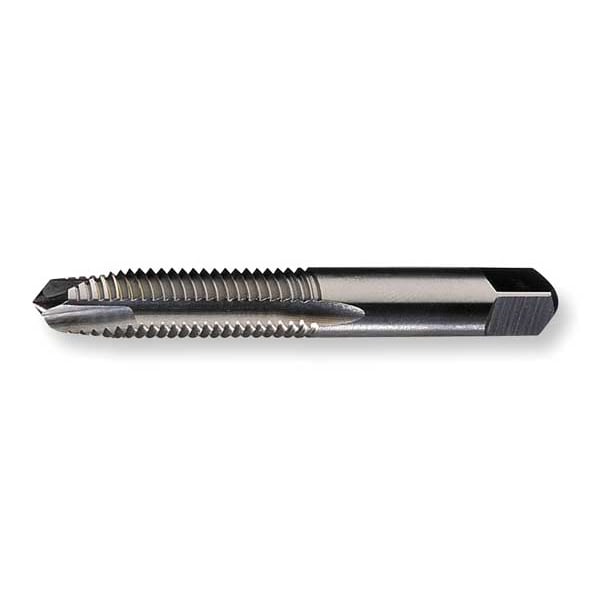

Widia Spiral Point Tap, Plug, 3 13313 - main

Spiral Point Tap, Plug, 3

  • Mfr # 13313

  • Zoro # G2617465

product price: $14.39
/ea

Key Features

Shank Dia.
0.381"
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
3/8"
Tap Chamfer
Plug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
13313
Zoro #
G2617465
UPC #
-
Country of Origin
Multiple

Dimensions

Shank Dia.
0.381"
Tap Size
3/8"
Tap Dimension Type
Inch
Overall Length
2-15/16"
Tap Thread Size
3/8"-24
Pitch Diameter Limit
H3
Thread Length
1-1/4"
Size
3/8
55% Thread Drill Size
11/32 in
Shank Length
1 11/16 in
Thread Size
3/8"-24
75% Thread Drill Size
8.50 mm
Square Size
0.2860 in
65% Thread Drill Size
R

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Chamfer
Plug
Number of Flutes
3
Tap Thread Type
UNF
Number of Pieces
1
Standards
ANSI
List Number
5301
Thread Direction
Right Hand
Tap Grouping
Tap
Tap Finish
Uncoated
Cutting Direction - Machining
Right Hand
Series
5301/2301
Measurement System
Fractional Inch
Secondary Material Application
Cast Iron, Stainless Steel
Thread Limit
H3
Spiral Direction
Neutral
Threads per Inch
24
Secondary Material Application ISO Code
K, M, N
Extended Neck
No
Primary Material Application
Aluminum, Brass, Bronze, Copper
Shank Type - Machining
Straight
Primary Material Application ISO Code
N
Coolant Fed
Non-Coolant Through
Thread Standard
UNF, UNJF
Class of Fit
6H
Helix Angle
0 Degrees

Description

Spiral Point Tap, Thread Size 3/8 In.-24, UNF, Overall Length 2 15/16 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 1/4 in, 75 Percent Thread Drill Size 8.50 mm, Thread Limit H3, Class of Fit 6H, Number of Flutes 3
