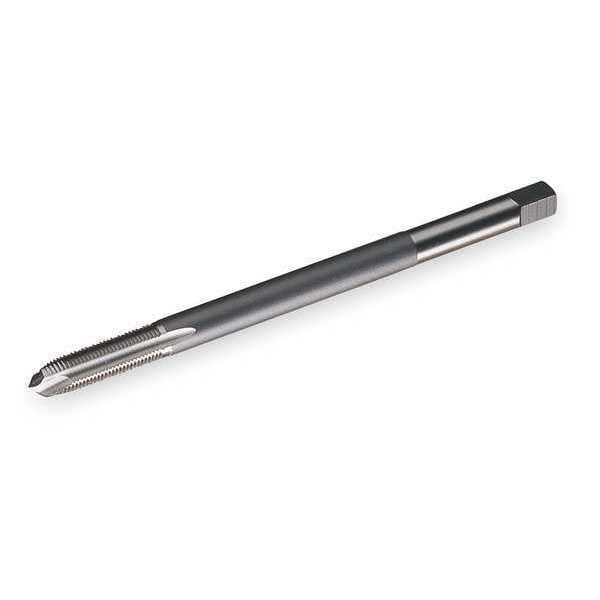

Widia Spiral Point Tap, Plug, 3 18941 - main

Spiral Point Tap, Plug, 3

  • Mfr # 18941

  • Zoro # G1757664

product price: $48.19
/ea

Key Features

Shank Dia.
0.381"
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
3/8"
Tap Chamfer
Plug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
18941
Zoro #
G1757664
UPC #
-
Country of Origin
United States

Dimensions

Shank Dia.
0.381"
Tap Size
3/8"
Tap Dimension Type
Inch
Overall Length
6"
Tap Thread Size
3/8"-24
Thread Length
1-1/4"
Thread Size
3/8"-24
55% Thread Drill Size
11/32 in
Shank Length
4 3/4 in
Square Size
0.2860 in
75% Thread Drill Size
8.50 mm
65% Thread Drill Size
R
Size
3/8
Pitch Diameter Limit
H3

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Chamfer
Plug
Number of Flutes
3
Thread Direction
Right Hand
Standards
ANSI, USCTI 302
Tap Finish
Uncoated
Tap Grouping
Tap
Tap Thread Type
UNF
Cutting Direction - Machining
Right Hand
Measurement System
Fractional Inch
Series
5301
Thread Standard
UNF, UNJF
Primary Material Application ISO Code
P
Shank Type - Machining
Straight
Spiral Direction
Neutral
Thread Limit
H3
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Class of Fit
6H
Secondary Material Application ISO Code
K, M, N
Extended Neck
Yes
Coolant Fed
Non-Coolant Through
Threads per Inch
24
Primary Material Application
Steel
Helix Angle
0 Degrees
Number of Pieces
1
List Number
5301L

Description

Spiral Point Tap, Thread Size 3/8 In.-24, UNF, Overall Length 6 in, High Speed Steel, Bright (Uncoated), Right Hand, 24
