  11. Square End Mill, 0.3125 in, Carbide

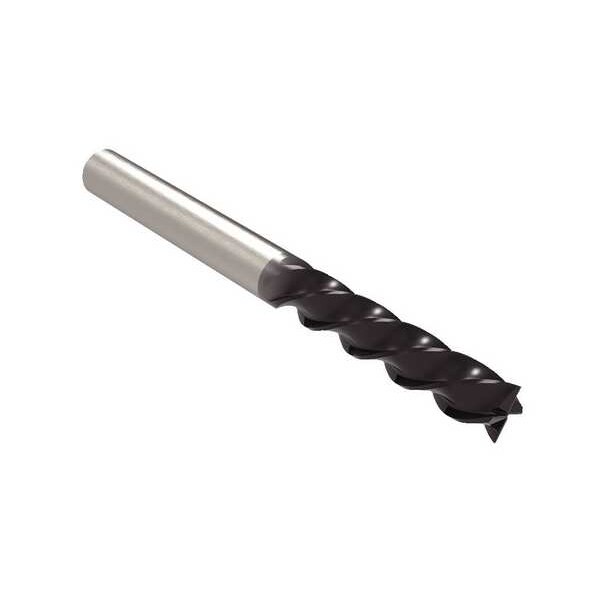

Widia Square End Mill, 0.3125 in, Carbide 4X1EE08003SZT WS15PE - main

Square End Mill, 0.3125 in, Carbide

  • Mfr # 4X1EE08003SZT WS15PE

  • Zoro # G002670482

product price: $74.19
/ea

Key Features

Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Shank Dia.
5/16 in
Series
Varimill(TM) Xtreme(TM)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4X1EE08003SZT WS15PE
Zoro #
G002670482
UPC #
-
Country of Origin
Israel

Dimensions

Shank Dia.
5/16 in
Overall Length
3 1/4 in
Length of Cut
1.25 in
Milling Dia.
0.3125 in

Details

Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Series
Varimill(TM) Xtreme(TM)
Primary Material Application ISO Code
K, M, P
Min. Helix Angle
37 Degrees
Material Grade - Machining
WS15PE
Drilling Tool Configuration
Individual
Cutting Direction
Right Hand
End Mill Style
Square
Finish - Machining
AlTiN
Primary Material Application
Cast Iron, Stainless Steel, Steel
Material - Machining
Carbide
Max. Helix Angle
39 Degrees
Helix Angle
30 Degrees
End Mill Application
Drilling, Helical Milling, Plunge Milling, Ramping :, Side Milling/Shoulder Milling: Square End, Slotting: Square End, Trochoidal Milling
Coolant Fed
Non-Coolant Through
Number of Coolant Holes
0
Measurement System
Inch
Material Applications
Cast Iron, Hardened Materials, High-Temp Alloys, Stainless Steel, Steel
Item
Square End Mill
Flute Type
Spiral
Shank Type - Machining
Straight
List Number
4X1E
Secondary Material Application
Hardened Steel, Nickel, Titanium
Flute Spacing
Variable
Secondary Material Application ISO Code
H, S

Description

Square End Mill, 0.3125 in Milling Dia., Carbide, AlTiN, Non-Coolant Through, Straight, Length of Cut 1.25 in, Overall Length 3 1/4 in, Shank Dia. 5/16 in, Neck Dia. Not Applicable
