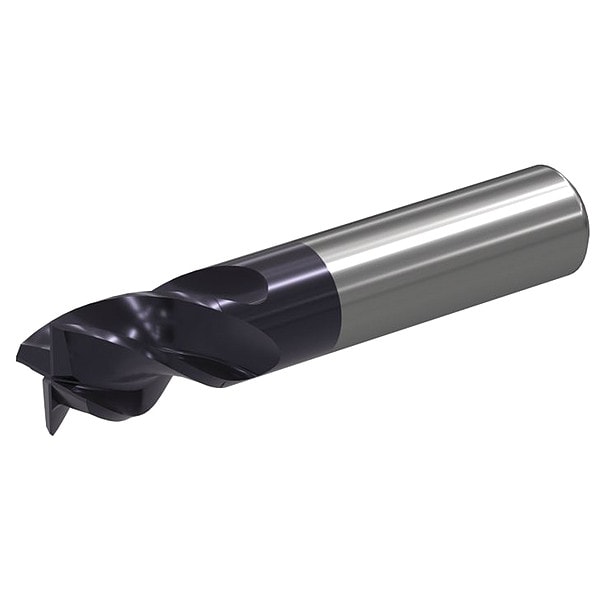

Widia Square End Mill, 0.375 in, Carbide W421E10025SZT WU20PE - main

Square End Mill, 0.375 in, Carbide

  • Mfr # W421E10025SZT WU20PE

  • Zoro # G105905955

product price:  $48.59
/ea

Key Features

Number of Flutes
4
Overall Length
4 in
Shank Dia.
3/8 in
Length of Cut
1.5 in
End Mill Style
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
W421E10025SZT WU20PE
Zoro #
G105905955
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Length
4 in
Shank Dia.
3/8 in
Length of Cut
1.5 in
Milling Dia.
0.375 in

Details

Item
Square End Mill
Number of Flutes
4
End Mill Style
Square
Single End/Double End
Single
List Number
W421
Spiral Direction
Right Hand
Cutting Direction
Right Hand
End Mill Application
Blank Ramping, Helical Milling, Side Milling, Square End Shoulder Milling, Square End Slotting
End Mill Cutting Type
Center Cutting
Series
WCE4
Helix Angle
39 Degrees
Finish - Machining
TiAlN
Material Grade - Machining
WU20PE
Drilling Tool Configuration
Individual
Material Applications
Cast Iron, Hardened Material, High-Temperature Alloy, Stainless Steel, Steel
Flute Type
Spiral
Primary Material Application ISO Code
K, M, P
Max. Helix Angle
39 Degrees
Material - Machining
Carbide
Secondary Material Application
Hardened Material, High-Temperature Alloy
Min. Helix Angle
37 Degrees
Primary Material Application
Cast Iron, Stainless Steel, Steel
Measurement System
Inch
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Secondary Material Application ISO Code
H, S
Flute Spacing
Variable

Description

Square End Mill, 0.375 in Milling Dia., Carbide, TiAlN, Non-Coolant Through, Straight, Length of Cut 1.5 in, Overall Length 4 in, Shank Dia. 3/8 in, Neck Dia. Not Applicable
