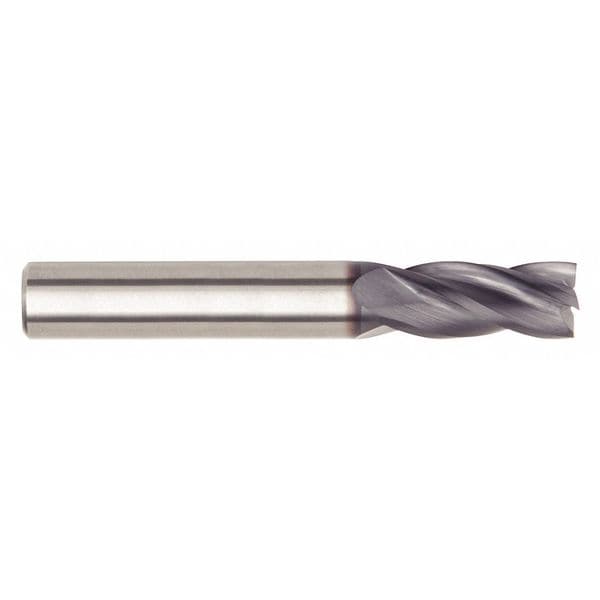

Square End Mill, 0.5 in, Carbide

Mfr # I4S0500W200L
Zoro # G3807201

83.69

Key Features

Dimension Type

Decimal Inch

Milling Diameter

0.5000"

End Mill Material

Carbide

Number of Flutes

Length of Cut

2 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: I4S0500W200L
Zoro #: G3807201
UPC #: 4050841820738
Country of Origin: India

Dimensions

Dimension Type: Decimal Inch
Milling Diameter: 0.5000"
Length of Cut: 2 in
Shank Dia.: 1/2 in
Overall Length: 4 in
Milling Dia.: 0.5 in
Wire Rope Length: 4 in
Length: 4 in

Details

End Mill Material: Carbide
Number of Flutes: 4
Single End/Double End: Single
End Mill Cutting Type: Center Cutting
Grade: TIALN
Cutting Direction: Right Hand
End Mill Application: Roughing/Finishing
Helix Angle: 30 Degrees
Item: Square End Mill
Series: GP
List Number: I4S
End Mill Style: Square
Material Grade - Machining: TiAlN
Material - Machining: Carbide
Finish - Machining: TiAlN
Coolant Fed: Non-Coolant Through
Spiral Direction: Right Hand
Drilling Tool Configuration: Individual
Measurement System: Inch
Shank Type - Machining: Weldon Flat
Primary Material Application: Cast Iron, Stainless Steel, Steel
Primary Material Application ISO Code: K, M, P
Flute Spacing: Fixed
Max. Helix Angle: 30 Degrees
Flute Type: Spiral

Description

Square End Mill, 0.5 in Milling Dia., Carbide, TiAlN, Non-Coolant Through, Weldon Flat, Length of Cut 2 in, Overall Length 4 in, Shank Dia. 1/2 in, Neck Dia. Not Applicable
