  6. Square End Mill, 4 mm, Carbide

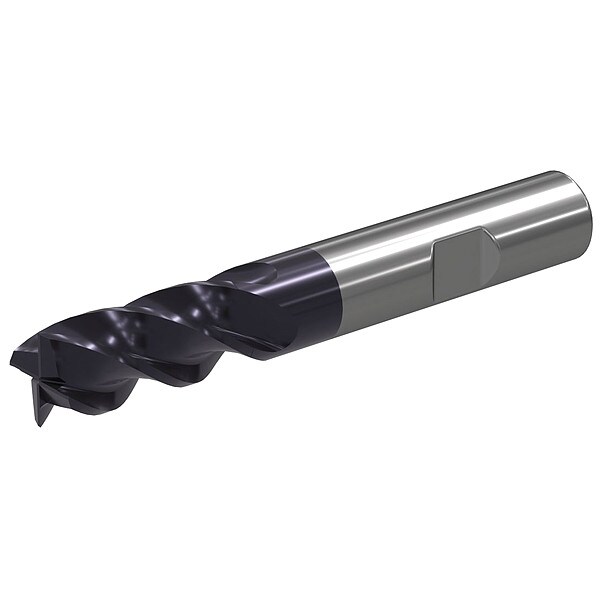

Widia Square End Mill, 4 mm, Carbide W401M04003SZW WU20PE - main

Square End Mill, 4 mm, Carbide

  • Mfr # W401M04003SZW WU20PE

  • Zoro # G205905237

product price:  $28.19
/ea

Key Features

Number of Flutes
4
Overall Length
57 mm
Shank Dia.
6 mm
Length of Cut
11 mm
End Mill Style
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
W401M04003SZW WU20PE
Zoro #
G205905237
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Length
57 mm
Shank Dia.
6 mm
Length of Cut
11 mm
Shank Length
41.3 mm
Milling Dia.
4 mm

Details

Item
Square End Mill
Number of Flutes
4
End Mill Style
Square
Single End/Double End
Single
Spiral Direction
Right Hand
End Mill Cutting Type
Center Cutting
List Number
W401
Series
WCE4
Helix Angle
39 Degrees
End Mill Application
Blank Ramping, Helical Milling, Side Milling, Square End Shoulder Milling, Square End Slotting
Cutting Direction
Right Hand
Secondary Material Application ISO Code
H, S
Material - Machining
Carbide
Material Grade - Machining
WU20PE
Shank Type - Machining
Weldon Flat
Material Applications
Cast Iron, Hardened Material, High-Temperature Alloy, Stainless Steel, Steel
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
K, M, P
Secondary Material Application
Hardened Material, High-Temperature Alloy
Finish - Machining
TiAlN
Flute Type
Spiral
Primary Material Application
Cast Iron, Stainless Steel, Steel
Drilling Tool Configuration
Individual
Max. Helix Angle
39 Degrees
Measurement System
Metric
Min. Helix Angle
37 Degrees
Flute Spacing
Variable

Description

Square End Mill, 4 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Weldon Flat, Length of Cut 11 mm, Overall Length 57 mm, Shank Dia. 6 mm, Neck Dia. Not Applicable
